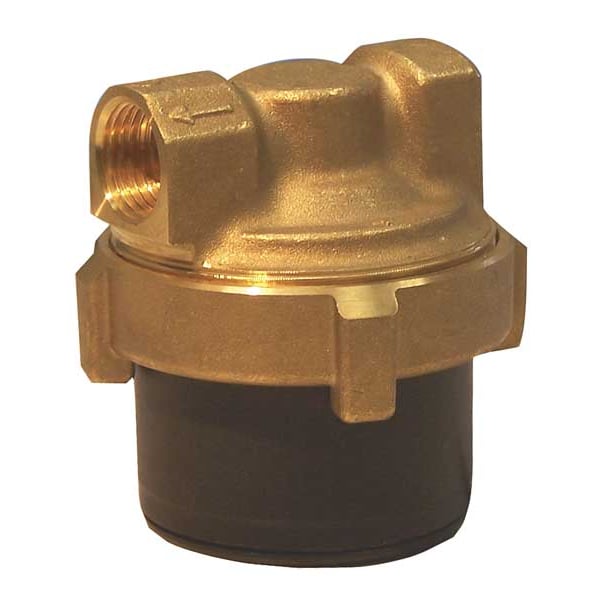

Brass 1/64 HP Centrifugal Pump 8-24V

  • Mfr # 59520-0000
  • Zoro # G0557085
product price:
$
399.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1/64 hp
Voltage - Pumps
8V DC to 24V DC
Housing Material - Pumps
Brass
Inlet Size - Pumps
1/2 in BSP
Outlet Size - Pumps
1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
59520-0000
Zoro #
G0557085
UPC #
671880579148
Country of Origin
Hungary

Dimensions

Inlet Size - Pumps
1/2 in BSP
Outlet Size - Pumps
1/2 in NPT
Length
2.8 in
Height
2 3/8 in
Manufacturers Warranty Length
1 yr
Inlet/Outlet Size
1/2"
Width
2 1/2 in
Overall Width
2.5 in
Cord Length
49 ft
Overall Height
2.3 in
Compatible Discharge Pipe Size
1/2 in
Compatible Intake Pipe Size
3/4 in
Overall Length
2.8 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
3/4 in
Discharge Diameter
1/2 in
Wire Rope Length
2.8 in
Fits Chest Size
Ignition Protected, Magnetic Drive-Sealed Pump Chamber

Details

HP - Pumps
1/64 hp
Voltage - Pumps
8V DC to 24V DC
Housing Material - Pumps
Brass
Max. Pressure - Pumps
3 psi
Max. Head
5 1/2 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Max. Liquid Temp.
176 Degrees F
Outlet
1/2" FNPT
Min. GPM @ Head
3 @ 4 ft
Hz
Does Not Apply
Housing Material
Brass
Motor Type
Brushless
Max. GPM @ Head
4 @ 2 ft
Inlet
1/2" BSP
Amps
1.8
Best Efficiency GPM @ Head
3 gpm @ 2 ft
GPH of Water @ 5 Ft. of Head
2.5
Connection Style
BSP
Voltage
8V DC to 24V DC
Pump Type
Magnetic Drive Circulation Pump
Max. Pressure
2.9 psi
Duty
Continuous
Impeller Material
Brass
Motor Enclosure
Totally Enclosed Fan Cooled
Agency Compliance
CE Certified, Meets EMC
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Item
Centrifugal Pump
HP
1/64
For Use With Potable Systems
No
Compatible with Media Type
Water
Pumping Application
Hot Water Circulation, Raw Water Cooling
Horsepower
1/64 hp
Pump Housing Material
Brass
Maximum Feet of Head
5.5 ft
Features
Ignition Protected, Magnetic Drive-Sealed Pump Chamber
Best Efficiency Head
2 ft
Best Efficiency Flow
3 gpm
Standards
ISO 8846
Duty Cycle
Continuous
Discharge Type
NPT
Shaft Material
Stainless Steel
Nameplate Voltage
8-24V DC
Maximum Flow Rate
5.5 gpm
Flow Rate @ 5 ft of Head (Maximum)
2.5 gpm
Shut Off Pressure (Maximum)
1.45 psi
Seal Type
Sealless
Volute Material
Brass
Shaft Seal Type
Sealless
Flow Rate (Maximum)
5.5 gpm
Feet of Head (Maximum)
5.5 ft
Chemical Compatibility
Water
Shut Off Pressure - Maximum
1.4 psi

Description

Centrifugal Pump, Phase -, Pump Housing Material Brass, Horsepower 1/64 hp, Nameplate Voltage 8-24V DC, Flow Rate @ 40 ft of Head (Maximum) Not Applicable, Flow Rate @ 60 ft of Head (Maximum) Not Applicable, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Maximum Feet of Head 5.5 ft, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 5.5 gpm, Flow Rate @ 5 ft of Head (Maximum) 2.5 gpm
