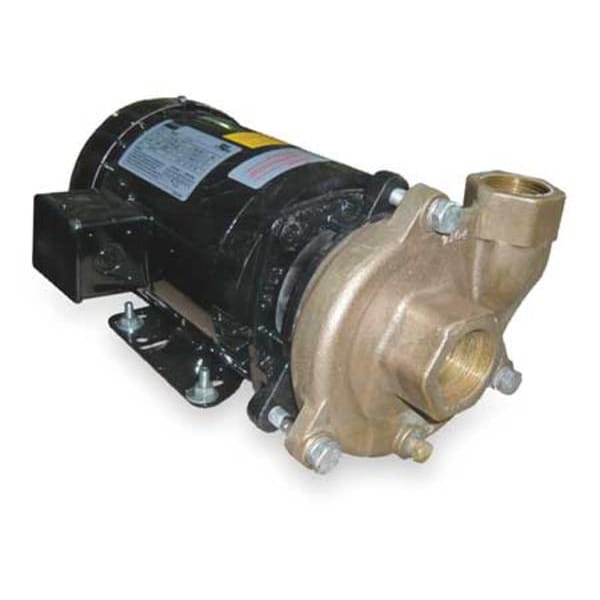

Dayton Bronze/Brass 2 HP Centrifugal Pump 208-230/460V 2ZWT5 - main

Bronze/Brass 2 HP Centrifugal Pump 208-230/460V

  • Mfr # 2ZWT5

  • Zoro # G1539955

product price: $1,197.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Brass, Bronze
Inlet Size - Pumps
1-1/2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2ZWT5
Zoro #
G1539955
UPC #
190735241974
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/2 in NPT
Outlet Size - Pumps
1-1/4 in NPT
Length
16 1/4 in
Width
7 5/8 in
Max. Dia. Solids
25/64 in
Height
7 in
Manufacturers Warranty Length
1 yr
Overall Length
15.5 in
Overall Width
7.4 in
Overall Height
7 in
Compatible Discharge Pipe Size
1 1/4 in
Compatible Intake Pipe Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Solid Diameter (Maximum)
0.39 in

Details

HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Brass, Bronze
Max. Pressure - Pumps
31 psi
Max. Head
72 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
GPM of Water @ 10 Ft. of Head
122
GPM of Water @ 50 Ft. of Head
68
Outlet
1-1/4" NPT
Impeller Type
Semi Open
Best Efficiency Range GPM @ Head
40 to 98 gpm @ 65 to 30 ft
Motor Type
3-Phase
GPM of Water @ 25 Ft. of Head
103
Frame
56J
Max. Case Pressure
200 psi
Motor RPM
3450
GPM of Water @ 40 Ft. of Head
84
HP
2
Agency Compliance
c UL us
Min. GPM @ Head
10 gpm @ 70 ft
Wetted Materials
Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel
GPM of Water @ 20 Ft. of Head
109
Inlet Pressure
200 psi
Max. GPM @ Head
122 gpm @ 10 ft
Max. Liquid Temp.
200 Degrees F
Duty
Continuous
Max. Specific Gravity
1.0
Best Efficiency GPM @ Head
65 gpm @ 52 ft
Voltage
208-230/460
Housing Material
Bronze, Brass
Bearing Type
Ball
Inlet
1-1/2" NPT
Includes
Manual
Item
Centrifugal Pump
Hz
60
Seal Material
Buna-N
Port Rotation
4 Position Increments
GPM of Water @ 15 Ft. of Head
115
GPM of Water @ 60 Ft. of Head
46
GPM of Water @ 30 Ft. of Head
98
GPM of Water @ 70 Ft. of Head
10
Impeller Material
Brass, Bronze
Phase
Three
Motor Enclosure
Totally Enclosed Fan Cooled
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Max. Pressure
31.16 psi
Amps
6.0-5.8/2.9
Standards
cULus Listed
Features
Continuous High Pressure Circulation
Horsepower
2 hp
Maximum RPM
3,450 RPM
Wetted Material
Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel
Discharge Rotation
90 Degrees Increments
Pump Housing Material
Bronze
Impeller Design
Semi-Open
Feet of Head (Minimum)
10 ft
Flow Rate @ 60 ft of Head (Maximum)
46 gpm
Minimum Flow Rate
10 gpm
Flow Rate @ 10 ft of Head (Maximum)
122 gpm
Maximum Media Temperature
200 Degrees F
Intake Type
NPT
Flow Rate @ 50 ft of Head (Maximum)
68 gpm
Nameplate Voltage
230/460V AC
Flow Rate @ 40 ft of Head (Maximum)
84 gpm
Flow Rate @ 30 ft of Head (Maximum)
98 gpm
Maximum Feet of Head
72 ft
Pumping Application
Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation
For Use With Potable Systems
No
Discharge Type
NPT
Shut Off Pressure (Maximum)
31 psi
Flow Rate @ 15 ft of Head (Maximum)
115 gpm
Specific Gravity (Maximum)
1
Flow Rate @ 70 ft of Head (Maximum)
10 gpm
Flow Rate @ 20 ft of Head (Maximum)
109 gpm
Compatible with Media Type
Non-Flammable Liquids
Maximum Flow Rate
122 gpm
Seal Type
Mechanical
Best Efficiency Flow
65 gpm
Frequency
60 Hz
Best Efficiency Head
52 ft
Motor Frame Designation
56J
Minimum Media Temperature
40 Degrees F
Shaft Material
304 Stainless Steel
Duty Cycle
Continuous
Volute Material
Bronze, Brass

Description

Centrifugal Pump, Phase Three, Pump Housing Material Bronze, Horsepower 2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 84 gpm, Flow Rate @ 60 ft of Head (Maximum) 46 gpm, Maximum Feet of Head 72 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 122 gpm, Flow Rate @ 10 ft of Head (Maximum) 122 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
