Shop DAYTON

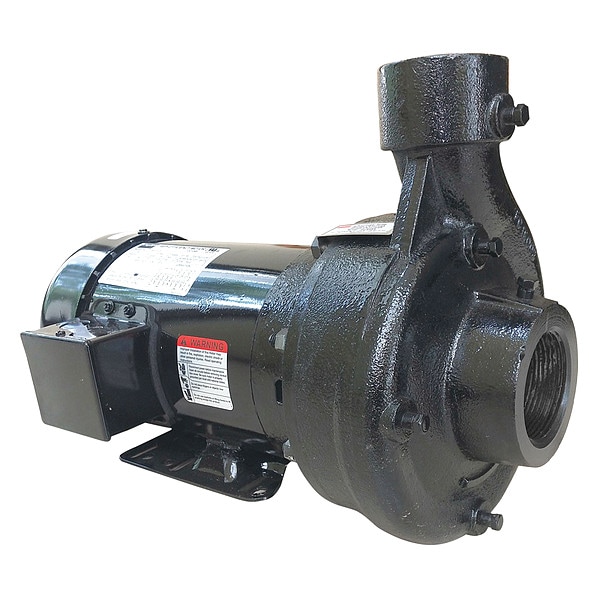

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ37

  • Zoro # G3723247

product price:  $847.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
2-1/2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ37
Zoro #
G3723247
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in NPT
Outlet Size - Pumps
2 in NPT
Height
12 1/4 in
Compatible Intake Pipe Size
2 1/2 in
Overall Height
12.2 in
Compatible Discharge Pipe Size
2 in
Inlet Diameter
2 1/2 in
Manufacturer Warranty Length
1 yr
Discharge Diameter
2 in
Overall Width
10.1 in
Motor Frame Size
145JM
Shaft Outer Diameter
7/8 in
Solid Diameter (Maximum)
0.13 in
Overall Length
17.7 in
Impeller Diameter
108 mm

Details

HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Max. Pressure - Pumps
27 psi
Max. Head
63 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Item
Centrifugal Pump
Phase
Three
Best Efficiency Range GPM @ Head
83 to 120 gpm @ 53 to 41 ft
Frame
145JM
Motor Enclosure
Totally Enclosed Fan Cooled
Amps
6.2/3.1
Discharge Pump Type
Centrifugal Pump
Flow Rate @ 20 ft of Head (Maximum)
163 gpm
For Use With Potable Systems
No
Shut Off Pressure (Maximum)
27 psi
Nameplate Voltage
230/460V AC
Horsepower
2 hp
Flow Rate @ 30 ft of Head (Maximum)
143 gpm
Flow Rate @ 40 ft of Head (Maximum)
122 gpm
Best Efficiency Flow
120 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 50 ft of Head (Maximum)
93 gpm
Intake Type
NPT
Discharge Type
NPT
Maximum Feet of Head
50 ft
Best Efficiency Head
53 ft
Frequency
60 Hz
Shaft Seal Type
Mechanical
Shaft Seal Material
Buna-N/Carbon/Ceramic
Chemical Compatibility
Non-Flammable Liquids
Viscosity (Maximum)
100 SUS
Impeller Material
Bronze
Media Temperature - Minimum
40 Degrees F
Discharge Rotation Increments
0 Degrees
Discharge Orientation
Top
Drive Coupling Type
No Coupling
Shaft Material
Stainless Steel
Full Load Current
5.2/2.6 A
Duty Cycle
Continuous
Priming
Manual
Hazardous Location Class
Not Rated
Case Pressure - Maximum
100 psi
Specific Gravity (Maximum)
1
Feet of Head (Maximum)
50 ft
Motor Speed - Maximum
3,450 RPM
Motor Design
Three-Phase
Mounting Orientation
Horizontal
Inlet Position
Center
Includes
Manual
Discharge Position
Center
Volute Material
Cast Iron
Standards
UL Recognized Motor
Flow Rate (Maximum)
163 gpm
Service Factor
1.25
Media Temperature - Maximum
180 Degrees F
Wetted Material
Bronze, Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Shut Off Pressure - Maximum
27 psi
Feet of Head (Minimum)
20 ft
Flow Rate (Minimum)
93 gpm
Ambient Temperature - Maximum
40 Degrees C
Thermal Overload Protection
Yes
Bearing Type
Ball
Electrical Connection Type
Hardwired
Number of Stages
1
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Inlet Orientation
Side

Description

Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 2 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 122 gpm, Maximum Feet of Head 50 ft, Compatible Intake Pipe Size 2 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 20 ft of Head (Maximum) 163 gpm, Flow Rate @ 30 ft of Head (Maximum) 143 gpm, Flow Rate @ 50 ft of Head (Maximum) 93 gpm
