  11. C-Frame Motor, Sleeve, Shaded Pole, 1 In. L

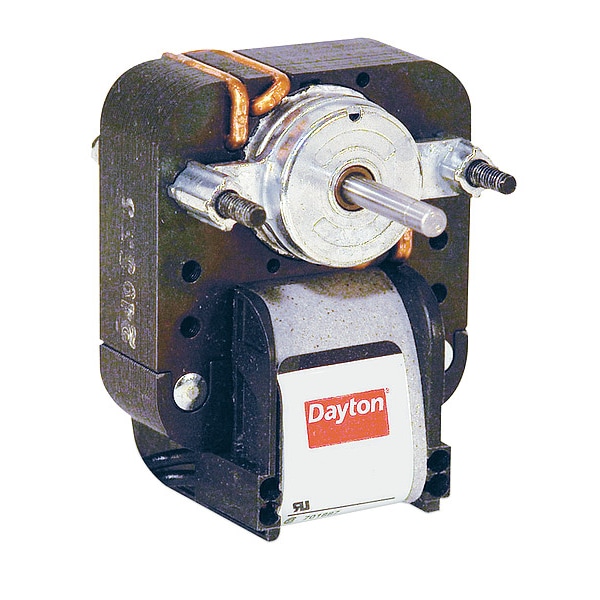

Dayton C-Frame Motor, Sleeve, Shaded Pole, 1 In. L 4M069E - main

C-Frame Motor, Sleeve, Shaded Pole, 1 In. L

  • Mfr # 4M069E

  • Zoro # G3285746

product price: $21.99
/ea

Key Features

Voltage
230V AC
Shaft Dia.
3/16 in
HP
1/250
Nameplate RPM
3,000
No. of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4M069E
Zoro #
G3285746
UPC #
190735329832
Country of Origin
Viet Nam

Dimensions

Shaft Dia.
3/16 in
Length Less Shaft
1 5/8 in
Shaft Length
1 in
Cord Length
12 in
Stud Size
#8-32
Stack Size
1/2 in

Details

Item
C-Frame Motor
Voltage
230V AC
HP
1/250
Nameplate RPM
3,000
No. of Speeds
1
Motor Sub Application
Direct Drive Fan/Blower
RPM Range
1,801-3,000
Motor Shaft Rotation
CWSE
Phase
Single
Motor Mounting Type
Ring/Stud
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Mounting Holes
(2) #8-32
Stud Quantity
2
Motor Thermal Protection
Impedance with One-Shot Backup
Mounting Stud Location
Shaft End
Ins. Class
B
O.C. Mounting
1-7/8 in
Motor Application
HVAC/R
Motor Bearings
Sleeve
Standards
CSA (701887), UL (E37403/E40077/E47479)
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Design
Shaded Pole
Motor Service Factor
1
Motor Enclosure Design
Open Air-Over
Full Load Amps
0.17 A
Frame
Non-Standard
Ambient Temperature
40 Degrees C
Motor Mounting Position
All Angle
Usable @ 200V
No
Usable @ 208V
No
Number of Shafts
1
Capacitor Required
No
Mounting
Stud
Frequency
60 Hz
Number of Speeds
1

Description

C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/250 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 230V AC, 0.17 A Full Load Amps, C-Frame Frame, Output Watts 3.8W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection One-Shot, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
