Shop All 3.3 Inch Diameter Motors
Dayton

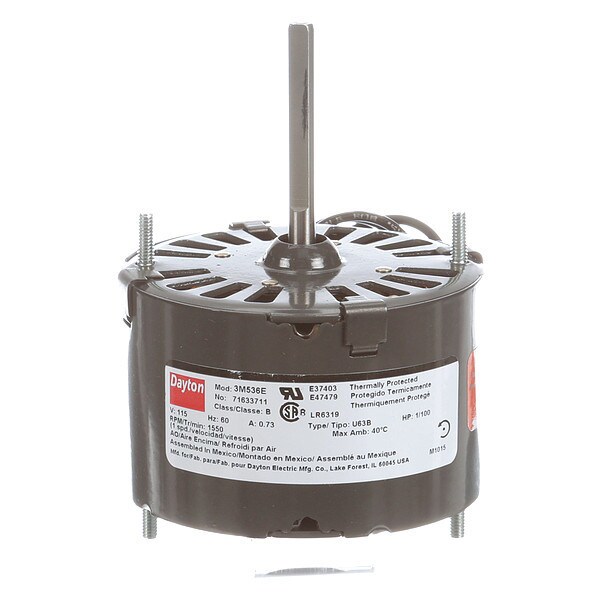

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3

product price: $40.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/100
See all product information

Product Information

Dimensions

Shaft Length 2 1/4 in
Cord Length 12 in
Length Less Shaft 2 3/4 in
Shaft Dia. 1/4 in
Body Dia. 3 5/16 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/100
RPM Range 1,501-1,600
Hz 60 Hz
Ins. Class B
Motor Design Shaded Pole
Number of Shafts 1
Motor Sub Application Direct Drive Fan/Blower
Motor Bearings Sleeve
Standards CSA Certified, UL Recognized
Frame 3.3
Motor Shaft Design Flat
No. of Speeds 1
Motor Service Factor 1
Motor Application HVAC/R
Full Load Amps 0.7 A
Mounting Pattern 2-7/8
Motor Shaft Rotation CWSE
Mounting Stud Location 2/Both Ends
Phase Single
Stud/Base Mtg. Pattern 2-7/8 in
Motor Mounting Type Stud
Max. Ambient Temp. 40 Degrees C
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Item HVAC Motor
Motor Thermal Protection Auto
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty Continuous
Capacitor Required No
Duty Cycle Continuous
Motor Mounting Position All Angle
Mounting Stud Pattern 2 7/8 in
Usable @ 200V No
Usable @ 208V No
Mounting Stud
Type OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.7 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
