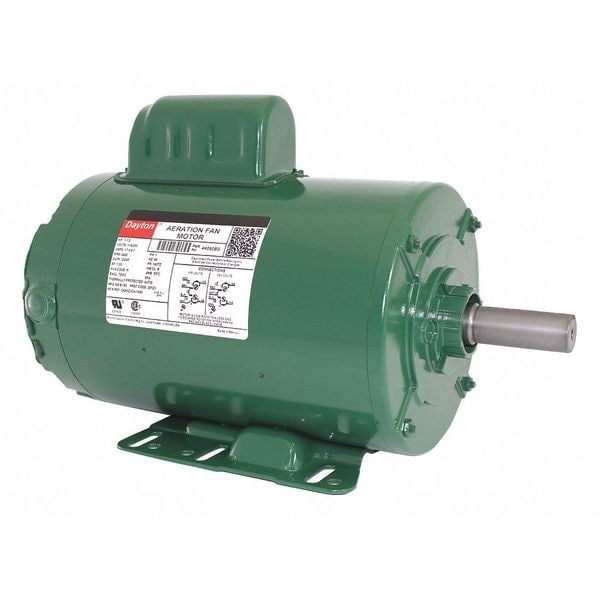

Capacitor-Start Aeration Fan Motor, 1 1/2 HP, 115/230V AC Voltage, 143TZ Frame, 3,450 Nameplate RPM

  • Mfr # 4K060

  • Zoro # G1986098

product price:
$
545.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4K060
Zoro #
G1986098
UPC #
190735327395
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Length Less Shaft
11 in
Overall Length
13 1/4 in
Shaft Length
2 1/4 in
Wire Rope Length
13 1/4 in
Length
13 1/4 in

Details

Item
Farm Duty Motor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
Frame
143TZ
Motor Thermal Protection
Auto
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
Agriculture
Motor Sub Application
Aeration Fan
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (258501), UL Recognized (E37403)
Capacitor Required
Capacitor Included
Finish
Enamel-Coated
Motor Bearings
Ball
Nominal Efficiency
77.1 %
Includes
1/4-20 UNC-2B 3/4 in Deep Tapped Hole in Shaft, Gasketed Terminal Access Cover, Shaft Key
Max. Ambient Temperature
50 Degrees C
Phase
Single
Duty
Continuous Air Over
Hz
60 Hz
Ins. Class
B
Full Load Amps
17.4/8.7 A
Item - Farm Duty Motors
Aeration Fan Motor
Frame Material
Steel
Max. Ambient Temp.
50 Degrees C
Duty Cycle
Continuous

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.4/8.7 A, 143TZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
