  11. Capacitor-Start High Torque Farm Duty Motor, 1 HP, 115/230V AC Voltage, 56HC Frame
Shop All Capacitor Start AC Motors
Dayton

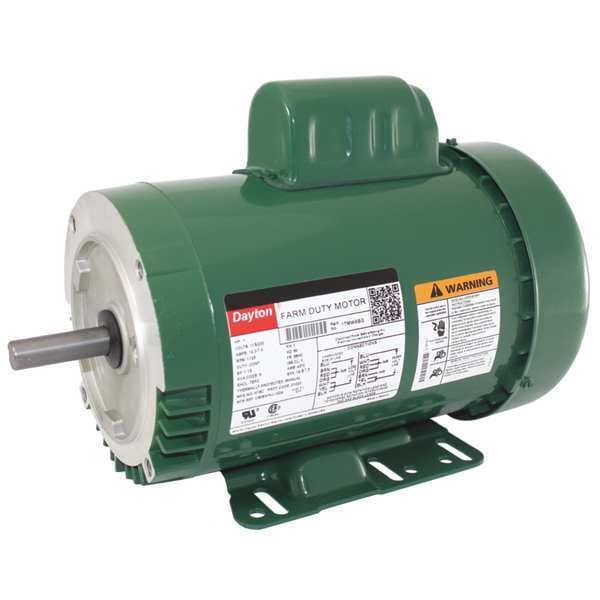

Capacitor-Start High Torque Farm Duty Motor, 1 HP, 115/230V AC Voltage, 56HC Frame

product price: $515.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Enclosure Design Totally Enclosed Fan-Cooled
  • Motor Mounting Type Face/Base
  • HP 1
  • RPM Range 1,701-1,800
  • Voltage 115/230V AC
See all product information

Product Information

Dimensions

Shaft Length 1 7/8 in
Shaft Dia. 5/8 in
Length Less Shaft 11 in
Overall Length 12 7/8 in

Details

Item High Torque Farm Duty Motor
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Face/Base
HP 1
RPM Range 1,701-1,800
Voltage 115/230V AC
Frame 56HC
Motor Thermal Protection Manual
Motor Service Factor 1.15
No. of Speeds 1
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application Farm Duty
Motor Sub Application High Torque
Nameplate RPM 1,725
Motor Frame Material Rolled Steel
Motor Mounting Position Horizontal
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Design Capacitor-Start
Standards CSA Certified (258501), UL Recognized (E37403)
Nominal Efficiency 69 %
Duty Continuous
Full Load Amps 14.0/7.0 A
Includes Shaft Slinger, Gasketed Conduit Box, Shaft Key, Removable Base
Phase Single
Ins. Class F
Hz 60 Hz
Capacitor Required Included
Motor Bearings Ball
Frame Material Rolled steel
Max. Ambient Temperature 40 Degrees C
Item - Farm Duty Motors High Torque Farm Duty Motor
Finish Enamel
Max. Ambient Temp. 40 Degrees C
Duty Cycle Continuous
Replacement For 4VZ12, 4VZ13

Description

High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.0/7.0 A, 56HC Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
