- Capacitor-Start Aeration Fan Motor, 3 HP, 230V AC Voltage, 145TZ Frame, 3,450 Nameplate RPM
Dayton

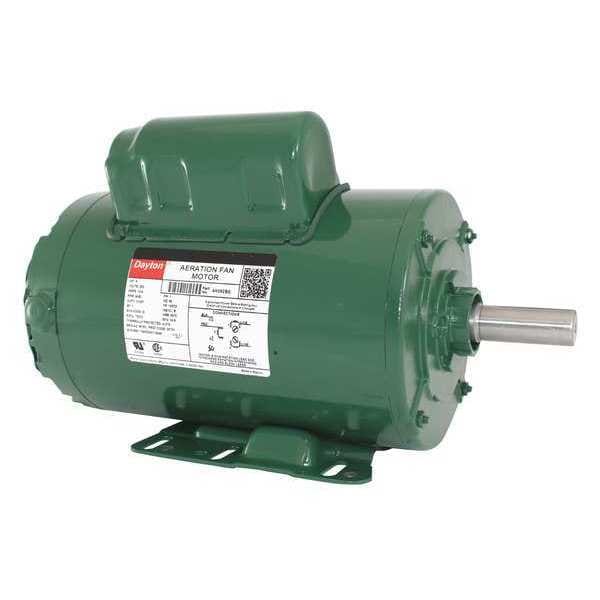

Capacitor-Start Aeration Fan Motor, 3 HP, 230V AC Voltage, 145TZ Frame, 3,450 Nameplate RPM
- Zoro #: G1986000
- Mfr #: 4K062
Tap to zoom
Hover or click to zoom
$451.07
- Item: Aeration Fan Motor
- Motor Enclosure Design: Totally Enclosed Air-Over
- Motor Mounting Type: Rigid Base
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $451.07
Dayton #4K062 Specifications
- Zoro #: G1986000
- Mfr #: 4K062
- Item: Aeration Fan Motor
- Motor Enclosure Design: Totally Enclosed Air-Over
- Motor Mounting Type: Rigid Base
- HP: 3
- RPM Range: 3,001-3,600
- Voltage: 230V AC
- Frame: 145TZ
- Motor Thermal Protection: Auto
- Motor Service Factor: 1
- No. of Speeds: 1
- Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
- Motor Application: Farm Duty
- Motor Sub Application: Aeration Fan
- Nameplate RPM: 3,450
- Motor Frame Material: Rolled Steel
- Motor Mounting Position: Horizontal
- Motor Shaft Design: Keyed
- Motor Shaft Rotation: CW/CCW
- Motor Design: Capacitor-Start
- Standards: CSA Certified (258501), UL Recognized (E37403)
- Item - Farm Duty Motors: Aeration Fan Motor
- Overall Length: 13 3/4 in
- Hz: 60
- Frame Material: Steel
- Nominal Efficiency: 79.9 %
- Shaft Dia.: 7/8 in
- Length Less Shaft: 11 1/2 in
- Capacitor Required: Included
- Full Load Amps: 14.9
- Shaft Length: 2 1/4 in
- Phase: Single
- Duty: Continuous Air Over
- Includes: 1/4-20 UNC-2B 3/4 in Deep Tapped Hole in Shaft, Gasketed Terminal Access Cover, Shaft Key
- Finish: Enamel
- Ins. Class: B
- Motor Bearings: Ball
- Max. Ambient Temperature: 50 Degrees C
- Max. Ambient Temp.: 50 Degrees C
- Duty Cycle: Continuous
- Country of Origin (subject to change): Mexico
Description
Aeration Fan Motor, Single Phase, Motor Design Capacitor-Start, 3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 230V AC, Full Load Amps 14.9, 145TZ Frame, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel, Finish Enamel
