Shop DAYTON

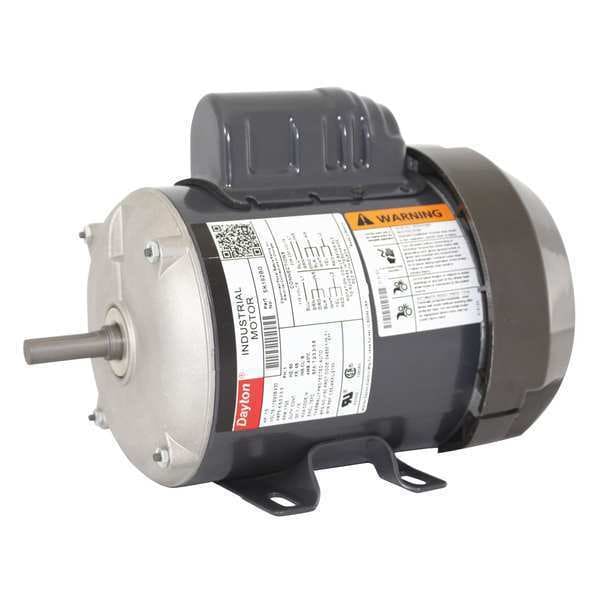

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 48 Frame

  • Mfr # 5K192

  • Zoro # G1629765

product price:  $424.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K192
Zoro #
G1629765
UPC #
190735344934
Country of Origin
Multiple

Dimensions

Overall Length
10 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
1/2 in
Shaft Length
1 11/16 in
Length Less Shaft
8 5/8 in
Wire Rope Length
10 1/4 in
Shaft Diameter
1/2 in
Frame Size
48

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
48
Motor Thermal Protection
Auto
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA (258501), UL Component Recognized (E47479)
Hz
60 Hz
Nominal Efficiency
71.6 %
Ins. Class
B
Frame Material
Steel
Full Load Amps
6.6/3.3-3.0 A
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Phase
Single
RPM Group
1701-1800
Duty
Continuous
Motor Efficiency Group
Standard Efficient
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Flat
Manufacturers Warranty
1 yr
Mounting Position
All Angle
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Frequency
60 Hz
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
6.6/3.3-3.0 A

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/3.3-3.0 A, 48 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
