Shop DAYTON

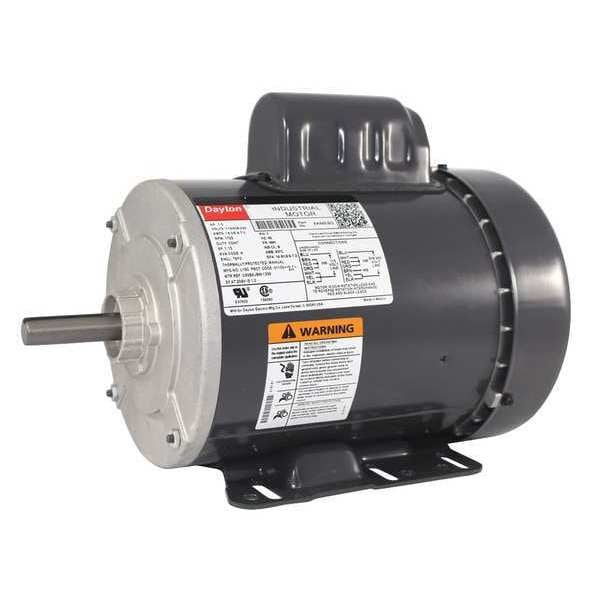

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56H Frame

  • Mfr # 6K640

  • Zoro # G3337555

product price:
$
668.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K640
Zoro #
G3337555
UPC #
190735366301
Country of Origin
Multiple

Dimensions

Overall Length
12 3/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
10 1/2 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Wire Rope Length
12 3/8 in
Frame Size
56H
Length
12 3/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56H
Motor Thermal Protection
Manual
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (258501), UL Recognized (E37403)
Ins. Class
B
Hz
60 Hz
Motor Efficiency Group
Standard Efficient
Max. Ambient Temp.
40 Degrees C
Phase
Single
Frame Material
Steel
Includes
Shaft Key
Footnotes
51
Full Load Amps
14.0/6.9-7.0 A
RPM Group
1701-1800
Nominal Efficiency
75.6 %
Duty
Continuous
Motor Bearings
Ball
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Efficiency Rating
Standard Efficiency (IE1)
Application
General Purpose
Full Load Current @ 60 Hz
14.0/6.9-7.0 A
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Mounting Position
All Angle
Shaft Design
Keyed
Number of Speeds
1
Product Type
General Purpose Motor
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.15

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
