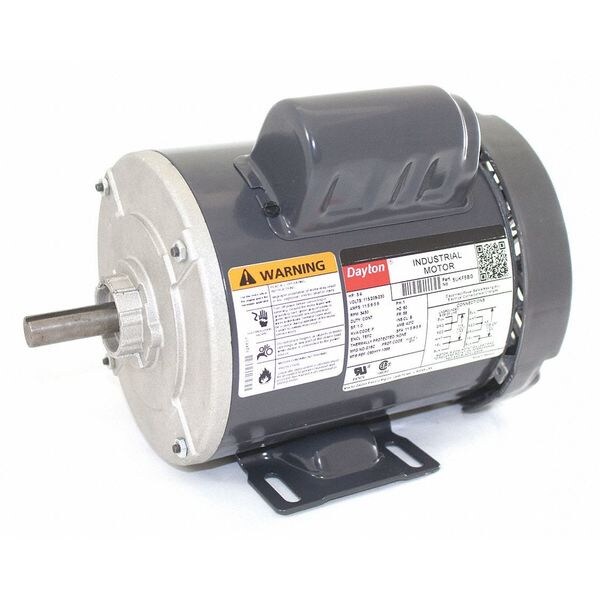

Capacitor-Start General Purpose Motor, 3/4 HP, 115/208-230 Voltage, 56 Frame, 3450 Nameplate RPM (Discontinued)
- Mfr # 5UKF5BG
- Zoro # G2251252
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
5UKF5BG
Zoro #
G2251252
UPC #
190735351697
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Overall Length
11 13/16 in
Length Less Shaft
9 15/16 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 HP, Nameplate RPM 3450, No. of Speeds 1, Voltage 115/208-230, Full Load Amps 11.5/5.6-5.6, 56 Frame, Hz 60, Motor Service Factor 1.00, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed, Motor Frame Material Steel
