Shop DAYTON

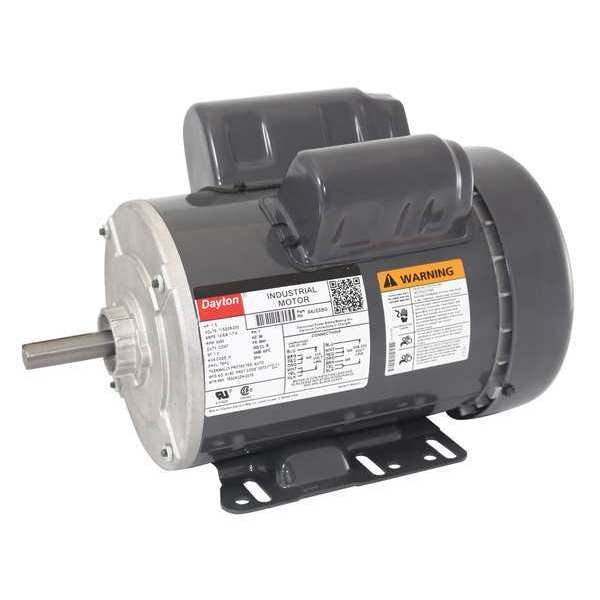

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame

  • Mfr # 6XJ53

  • Zoro # G0655085

product price:
$
530.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6XJ53
Zoro #
G0655085
UPC #
190735373569
Country of Origin
Mexico

Dimensions

Overall Length
12 7/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
11 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Frame Size
56H
Wire Rope Length
12 7/8 in
Length
12 7/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56H
Motor Thermal Protection
Auto
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258501), UL Recognized (E37403)
Hz
60 Hz
Duty
Continuous
RPM Group
3001-3600
Full Load Amps
14.6/8.1-7.4 A
Motor Efficiency Group
Energy Efficient
Includes
Shaft Key
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
80.1 %
Ins. Class
B
Motor Bearings
Ball
Footnotes
24, 51
Phase
Single
Frame Material
Steel
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Efficiency Rating
High Efficiency (IE2)
Insulation Class
B
Shaft Design
Keyed
Application
General Purpose
Full Load Current @ 60 Hz
14.6/8.1-7.4 A
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Mounting Position
All Angle
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.6/8.1-7.4 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
