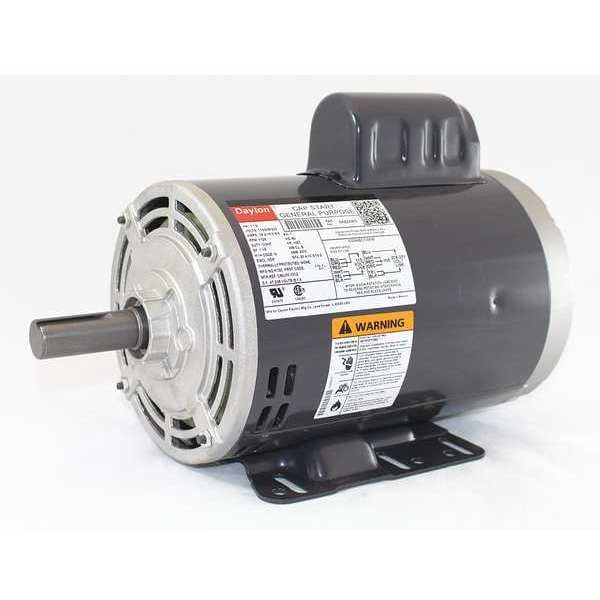

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145T Frame
Mfr # 6K826
Zoro # G1701831
product price:Â
$
433.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6K826
- Zoro #
- G1701831
- UPC #
- 190735366509
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 10 15/16 in
- Overall Length
- 13 1/4 in
- Shaft Length
- 2 5/16 in
- Shaft Dia.
- 7/8 in
- Manufacturers Warranty Length
- 1 yr
- Wire Rope Length
- 13 1/4 in
- Shaft Diameter
- 7/8 in
- Frame Size
- 145T
- Length
- 13 1/4 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 19.2/10-9.6 A, 145T Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
