Shop DAYTON

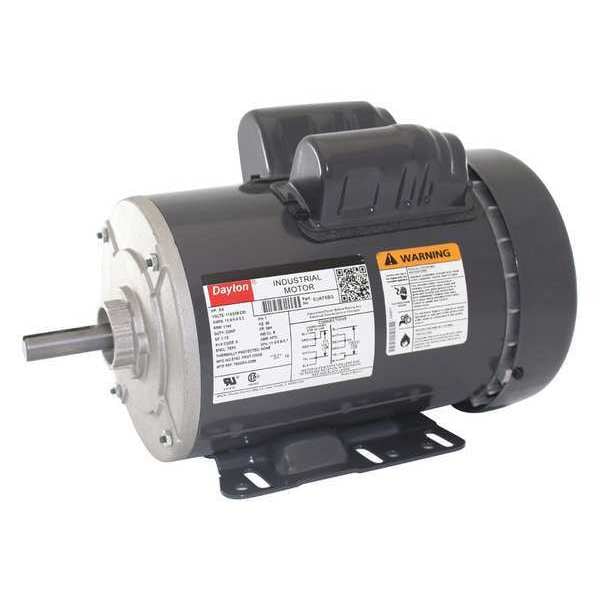

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56H Frame

  • Mfr # 5UKF6BG

  • Zoro # G1828373

product price:
$
1,033.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
3/4 hp
RPM Range
1,101-1,200
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UKF6BG
Zoro #
G1828373
UPC #
190735351703
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
11 5/8 in
Overall Length
13 3/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56H
Shaft Diameter
5/8 in
Wire Rope Length
13 3/8 in
Length
13 3/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
3/4 hp
RPM Range
1,101-1,200
Voltage
115/208-230V AC
Frame
56H
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,140 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258501), UL Recognized (E47479)
Footnotes
24, 51
Includes
Conduit Box, Shaft Key
Ins. Class
B
RPM Group
1101-1200
Frame Material
Steel
Phase
Single
Nominal Efficiency
73.6 %
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Full Load Amps
10.6/5.4-5.3 A
Motor Efficiency Group
Energy Efficient
Hz
60 Hz
Motor Bearings
Ball
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Number of Speeds
1
Frequency
60 Hz
Full Load Current @ 60 Hz
10.6/5.4-5.3 A
Bearing Type
Ball
Mounting Position
All Angle
Efficiency Rating
High Efficiency (IE2)
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.6/5.4-5.3 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
