Shop DAYTON

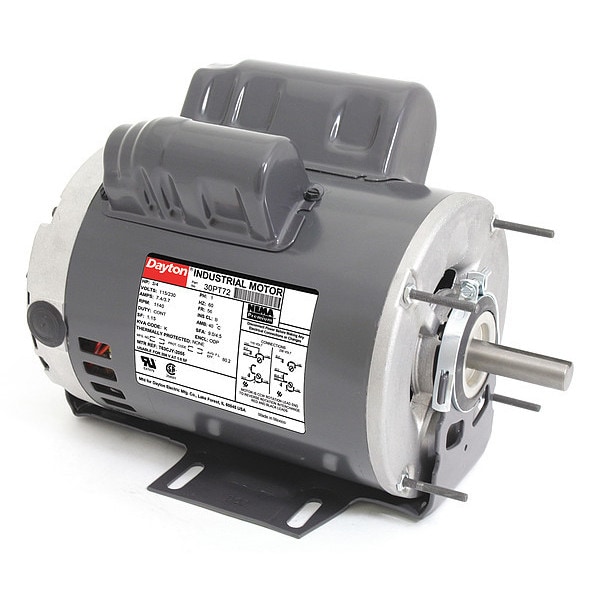

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56 Frame

  • Mfr # 30PT72
  • Zoro # G9090663
product price:
$
875.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
3/4 hp
RPM Range
1,101-1,200
Voltage
115V AC, 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
30PT72
Zoro #
G9090663
UPC #
190735248591
Country of Origin
Mexico
Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
3/4 hp
RPM Range
1,101-1,200
Voltage
115V AC, 230V AC
Frame
56
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,140 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA (258501), UL (E47479)
Phase
Single
Motor Efficiency Group
Premium Efficient
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
80.2 %
RPM Group
1101-1200
Includes
Start Capacitor (495 MFD, 165V AC)
Inverter Rated
Not Inverter Rated
Ins. Class
B
Hz
60 Hz
Green Certification or Other Recognition
Energy Aware Certified
Duty
Continuous
Full Load Amps
7.4/3.7 A
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Frame Material
Steel
Motor Bearings
Ball
Duty Cycle
Continuous
Capacitor Required
Yes
Inverter Rating
Not Inverter Rated
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
Premium Efficiency (IE3)
Shaft Design
Keyed
Application
General Purpose
Product Type
General Purpose Motor
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
7.4/3.7 A
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Frequency
60 Hz

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.4/3.7 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
