  11. Capacitor-Start/Run General Purpose Motor, 5 hp HP, 230V AC Voltage, 213T Frame

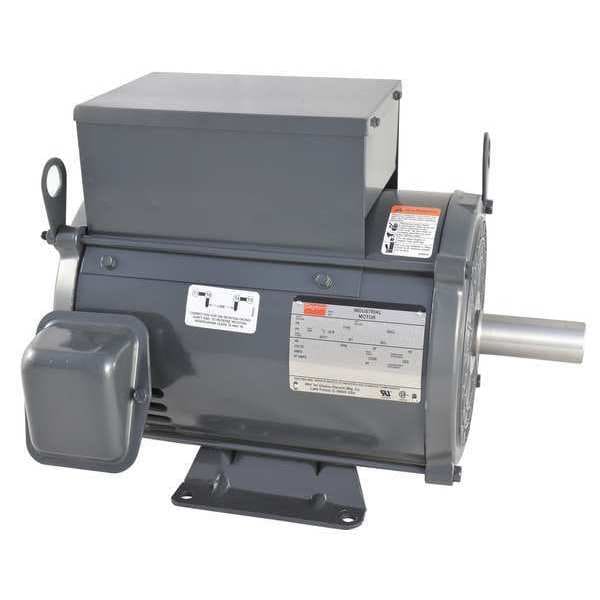

Dayton Capacitor-Start/Run General Purpose Motor, 5 hp HP, 230V AC Voltage, 213T Frame 5K676 - main

Capacitor-Start/Run General Purpose Motor, 5 hp HP, 230V AC Voltage, 213T Frame

  • Mfr # 5K676

  • Zoro # G1820445

product price: $1,600.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5K676
Zoro #
G1820445
UPC #
190735345511
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Dia.
1 3/8 in
Shaft Length
3 1/2 in
Overall Length
17 1/4 in
Length Less Shaft
13 3/4 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC
Frame
213T
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,745 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258525), UL Recognized (E47479)
Nominal Efficiency
85 %
RPM Group
1701-1800
Inverter Rated
Not Inverter Rated
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Frame Material
Steel
Includes
Conduit Box, Shaft Key
Full Load Amps
22.0 A
Hz
60 Hz
Phase
Single
Ins. Class
F
Footnotes
24, 51
Motor Efficiency Group
Energy Efficient
Motor Bearings
Ball
Duty Cycle
Continuous

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 22.0 A, 213T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
