Shop MARATHON

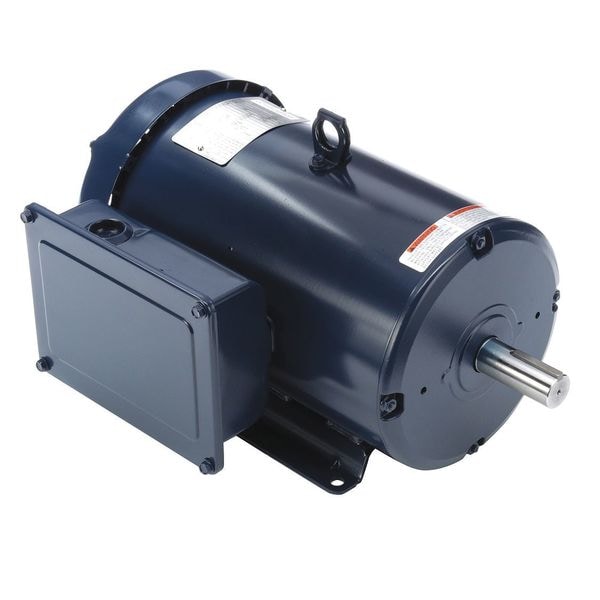

Capacitor-Start/Run General Purpose Motor, 5 hp HP, 208-230V AC Voltage, 184T Frame

  • Mfr # 184TBFW7726

  • Zoro # G6127441

product price:
$
1,083.99
/ea
Additional $170.00 delivery surcharge applies per item.
See details

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
5 hp
RPM Range
1,701-1,800
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
184TBFW7726
Zoro #
G6127441
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
5 hp
RPM Range
1,701-1,800
Voltage
208-230V AC
Frame
184T
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Application
General Purpose
Nameplate RPM
1,755 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA, UL
Nominal Efficiency
85.5 %
Duty
Continuous
Frame Material
Steel
RPM Group
1701-1800
Inverter Rated
Not Inverter Rated
Motor Bearings
Ball
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Full Load Amps
21.5-19.5 A
Ins. Class
F
Phase
Single
Usable @ 208V
Usable at 208V
Weight
103 lb
NEMA Design
L
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Capacitor Required
No
Inverter Rating
Not Inverter Rated
Frequency
60 Hz
NEMA Design Class
L
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
21.5-19.5 A
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 21.5-19.5 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
