Shop DAYTON

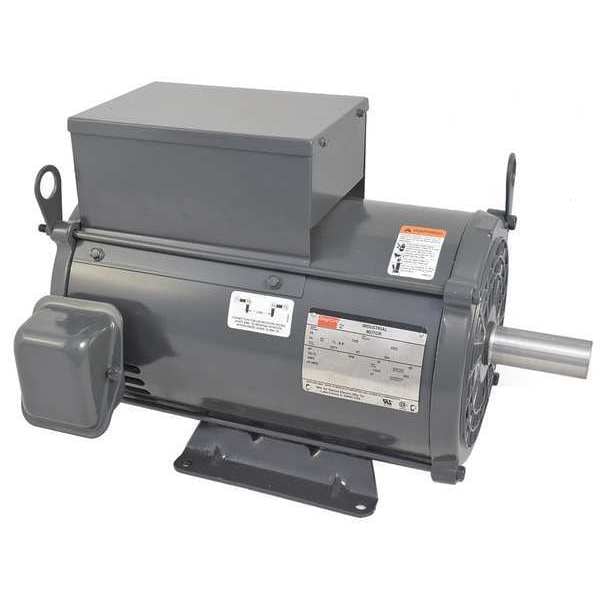

Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 230V AC Voltage, 215T Frame

  • Mfr # 5K677

  • Zoro # G1847562

product price:  $1,678.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
7 1/2 hp
RPM Range
1,701-1,800
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K677
Zoro #
G1847562
UPC #
190735345528
Country of Origin
Mexico

Dimensions

Overall Length
19 7/8 in
Length Less Shaft
16 1/2 in
Shaft Length
3 3/8 in
Shaft Dia.
1 3/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 3/8 in
Frame Size
215T
Wire Rope Length
19 7/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
7 1/2 hp
RPM Range
1,701-1,800
Voltage
230V AC
Frame
215T
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,740 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258525), UL Recognized (E47479)
Max. Ambient Temp.
40 Degrees C
Footnotes
24, 51
Frame Material
Steel
Includes
Shaft Key
RPM Group
1701-1800
Duty
Continuous
Full Load Amps
35.5 A
Motor Bearings
Ball
Motor Efficiency Group
Energy Efficient
Nominal Efficiency
85.4 %
Ins. Class
F
Phase
Single
Hz
60 Hz
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Mounting Position
Horizontal
Application
General Purpose
Number of Speeds
1
Efficiency Rating
High Efficiency (IE2)
Motor Enclosure Type
Open Drip Proof
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Bearing Type
Ball
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Full Load Current @ 60 Hz
35.5 A

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 35.5 A, 215T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Shaft Design Keyed
