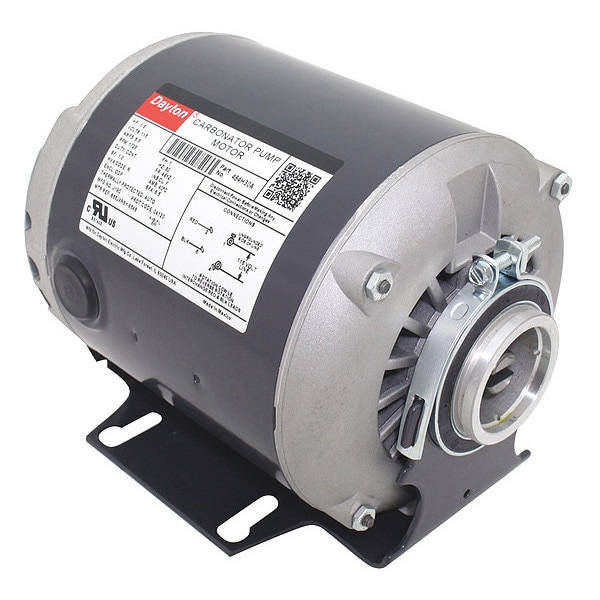

Dayton Carbonator Pump Motor, 1/3 HP, 115V, Hz: 60 484H30 - main

Carbonator Pump Motor, 1/3 HP, 115V, Hz: 60

  • Mfr # 484H30

  • Zoro # G8657081

product price:  $251.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
Nameplate RPM
1,725
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
484H30
Zoro #
G8657081
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1/2 in
Overall Length
7 11/16 in
Length Less Shaft
7 11/16 in
Bolt Circle Diameter
5 1/8 in
Lead Length
4 1/2 in
Body Diameter
6.3 in
Shaft Diameter
5/8 in
Frame Size
48
Height
7 11/16 in

Details

Item
Carbonator Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
Nameplate RPM
1,725
RPM Range
1,701-1,800
Voltage
115V AC
Frame
48
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Phase
Single
Motor Bearings
Ball
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Hz
60 Hz
Full Load Amps
6.5
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Standards
CSA (258501), UL (37403)
Ins. Class
B
Motor Sub Application
Carbonator Pump
Motor Application
Pump
Motor Mounting Type
Cradle Base
Number of Speeds
1
Sub Application
Carbonator Pump
Insulation Class
B
Shaft Design
Round
Includes
CLAMP, SCREW, TYPE C, BOOKLET
Service Factor Current
6.5 A
Series
TM
Frame Material
Stainless Steel
Requires Overload Relay
No
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
6.5 A
Motor Enclosure Type
Open Drip Proof
Manufacturers Warranty
1 yr
Bearing Type
Ball
Nameplate RPM @ 50 Hz
No Applicable
Number of Wires
7
Starting Method
Across-the-Line
Duty Cycle
Continuous
Shaft Material
Stainless Steel
Product Type
Pump Motor
Mounting Position
Horizontal
Application
Pump
NEMA Design Class
B
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Conduit Box Location
Exterior
Weight
14 lb
Includes Diaphragm
Diaphragm Not Included
Ambient Temperature - Maximum
40 Degrees C
Frame Finish
Powder-Coated

Description

Carbonator Pump Motor, Frame 48, Hz 60 Hz, Full Load Amps 6.5, HP 1/3, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof
