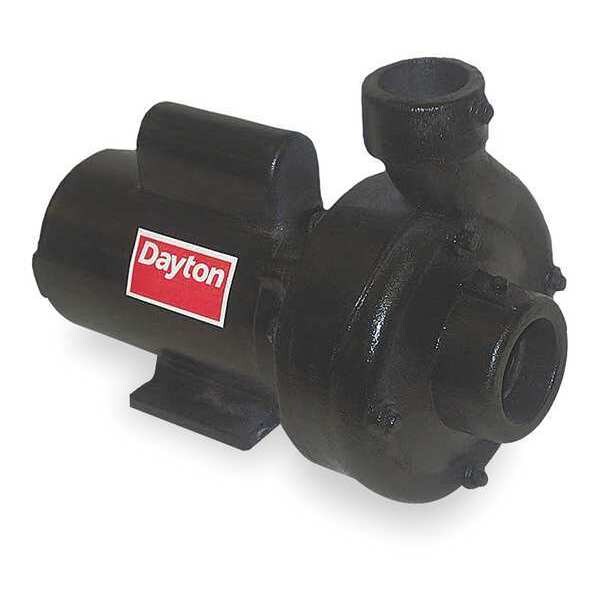

Dayton Cast Iron 3 HP Centrifugal Pump 230V 4ZA37

Cast Iron 3 HP Centrifugal Pump 230V (Discontinued)

  • Mfr # 4ZA37
  • Zoro # G0912807
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4ZA37
Zoro #
G0912807
UPC #
190735341131
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in NPT
Outlet Size - Pumps
2 in NPT
Max. Dia. Solids
13/32 in
Manufacturers Warranty Length
1 yr
Length
16 1/4 in
Width
9 3/8 in
Height
12 in
Overall Height
12 in
Overall Width
9.3 in
Overall Length
16.2 in
Compatible Intake Pipe Size
2 1/2 in
Compatible Discharge Pipe Size
2 in
Solid Diameter (Maximum)
0.41 in

Details

Discharge Pump Type
Straight Center Discharge Pump
HP - Pumps
3 hp
Phase - Pumps
1
Voltage - Pumps
240V AC
Max. Pressure - Pumps
38 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Best Efficiency Range GPM @ Head
100 to 160 gpm @ 78 to 60 ft
Inlet Pressure
100 psi
Motor RPM
3,500 RPM
Motor Type
Capacitor-Start
Port Rotation
4 Position Increments
Hz
60
Amps
12.5
GPM of Water @ 40 Ft. of Head
194
GPM of Water @ 60 Ft. of Head
156
Outlet
2" NPT
Frame
56J
Max. Head
87 ft
Bearing Type
Ball
Motor Enclosure
Totally Enclosed Fan Cooled
Impeller Material
Bronze
Housing Material
Cast iron
Max. Specific Gravity
1.0
Max. Pressure
38 psi
Phase
Single
Duty
Continuous
Max. Liquid Temp.
40 Degrees to 180 Degrees F
Seal Material
Buna Elastomer and Stainless Steel Parts, Carbon/Ceramic, Standard
Item
Straight Center Discharge Pump
HP
3
Voltage
230
GPM of Water @ 80 Ft. of Head
81.8
Wetted Materials
Buna-N, Carbon, Ceramic, CI,BR, Stainless Steel
GPM of Water @ 50 Ft. of Head
176
GPM of Water @ 70 Ft. of Head
128
GPM of Water @ 30 Ft. of Head
209
Impeller Type
Enclosed
Inlet
2-1/2" NPT
Flow Rate @ 80 ft of Head (Maximum)
81.8 gpm
Flow Rate @ 70 ft of Head (Maximum)
128 gpm
Impeller Design
Closed
Seal Type
Mechanical
Pump Housing Material
Cast Iron
Frequency
60 Hz
Best Efficiency Head
60 to 78 ft
Shut Off Pressure (Maximum)
38 psi
Motor Frame Designation
56J
Maximum Media Temperature
180 Degrees F
Maximum RPM
3,500 RPM
Horsepower
3 hp
Flow Rate @ 50 ft of Head (Maximum)
176 gpm
Flow Rate @ 40 ft of Head (Maximum)
194 gpm
Discharge Rotation
90 Degrees Increments
Nameplate Voltage
230V AC
Wetted Material
Brass, Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Flow Rate @ 60 ft of Head (Maximum)
156 gpm
Discharge Type
NPT
Flow Rate @ 30 ft of Head (Maximum)
209 gpm
Specific Gravity (Maximum)
1
Shaft Material
410 Stainless Steel
Intake Type
NPT
Duty Cycle
Continuous

Description

Straight Center Discharge Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 3 hp, Nameplate Voltage 230V AC, Flow Rate @ 40 ft of Head (Maximum) 194 gpm, Flow Rate @ 60 ft of Head (Maximum) 156 gpm, Flow Rate @ 80 ft of Head (Maximum) 81.8 gpm, Compatible Intake Pipe Size 2 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 30 ft of Head (Maximum) 209 gpm
