This item is Discontinued.

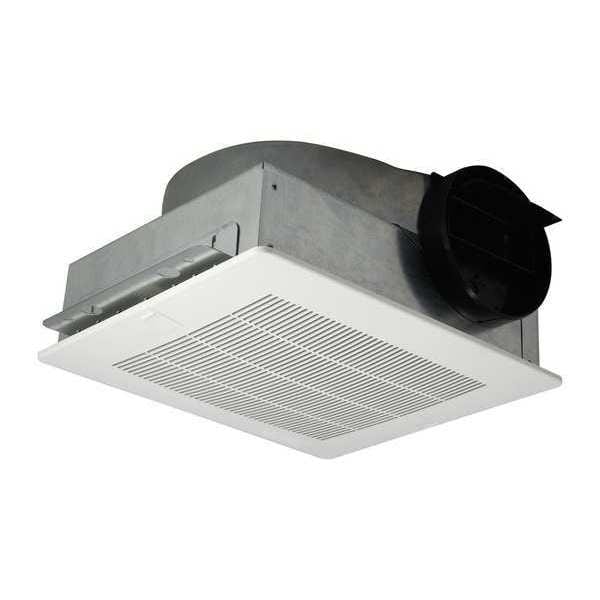

Dayton Ceiling Ventilator, 150 CFM, 115 V 5AE69

Ceiling Ventilator, 150 CFM, 115 V (Discontinued)

  • Mfr # 5AE69
  • Zoro # G2458154
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5AE69
Zoro #
G2458154
UPC #
190735341872
Country of Origin
United States

Dimensions

Dimension D
6"
Discharge Dia.
6"
Duct Dia.
6 in
Grille Width
13 1/4 in
Dimension E
1-1/4"
Dimension A
13-7/8"
Dimension B
11-1/2"
Housing Length
13 7/8 in
Grille Length
14 7/8 in
Housing Height
7 in
Housing Width
11 1/2 in

Details

Item
Bathroom Fan
For Use With
General Ventilation Applications
Max. Inlet Temp.
104 Degrees F
Phase
1
Motor Insulation
Class B
Voltage
115V AC
Sones @ 0.125-In. SP @ 5 Ft.
2.4
Watts
129 W
CFM @ 1.000-In. SP
92
CFM @ 0.375-In. SP
152
Sones @ 0.100-In. SP @ 5 Ft.
2.5
Full Load Amps
1.70
Includes
Backdraft Damper, Hardware, Mounting Brackets
Hz
60 Hz
CFM @ 0.750-In. SP
138
Insulated
No
Sones @ 0.000-In. SP @ 5 Ft.
2.3
Recommended Accessories
3DPF8, 3DPG1, 3AZF9, 3AZG1, 48C172
CFM @ 0.250-In. SP
154
Grille Color
White
Motor RPM
1050
CFM @ 0.125-In. SP
155
CFM @ 0.100-In. SP
156 cfm
Number of Speeds
1
Wheel Material
Polypropylene
CFM @ 0.000-In. SP
160
Grille Material
Polystyrene
CFM @ 0.625-In. SP
147
CFM @ 0.500-In. SP
149
Motor Enclosure
Open Dripproof
Standards
AMCA Air and Sound, CSA Certified Motor, UL/cUL 507
Mounting Position
Ceiling, Horizontal
CFM @ 0.875-In. SP
123
Sones @ 0.250-In. SP @ 5 Ft.
3.0
Housing Material
Galvanized Steel
Speed Control
48C172
Motor Type
Shaded Pole
Motion Sensing
No
Profile
Medium
Heater
No
Lighted
No

Description

Bathroom Fan, Housing Material Galvanized Steel, Heater No, Includes Backdraft Damper, Hardware, Mounting Brackets, Mounting Location Ceiling, Horizontal, Number of Speeds 1, Lighted No, Phase 1
