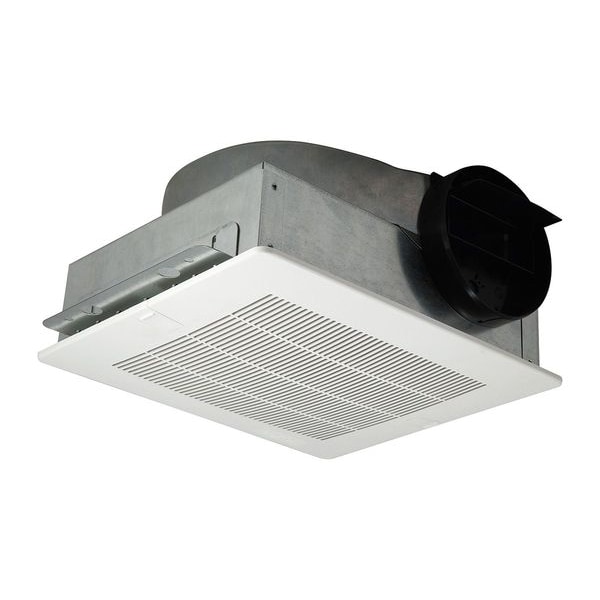

Ceiling Ventilator, 92 CFM, 115 V

DAYTON| Zoro #: G0959016| Mfr #: 5AE68

$128.03 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0959016 Mfr #: 5AE68
Voltage: 115VACHz: 60
Motor Type: Shaded PoleMotor Insulation: Class B
Grille Material: PolystyreneGrille Color: White
Housing Material: Galvanized SteelWheel Material: Polypropylene
Speed Control: 48C172Includes: Backdraft Damper, Hardware and Mounting Brackets
Standards: UL/cUL 507, AMCA Air and Sound, CSA Certified MotorItem: Ceiling Ventilator
CFM @ 0.000-In. SP: 102CFM @ 0.100-In. SP: 92
CFM @ 0.125-In. SP: 88CFM @ 0.200-In. SP: -
CFM @ 0.250-In. SP: 72CFM @ 0.375-In. SP: 59
CFM @ 0.500-In. SP: 45CFM @ 0.625-In. SP: 30
CFM @ 0.750-In. SP: -CFM @ 0.875-In. SP: -
CFM @ 1.000-In. SP: -Sones @ 0.000-In. SP @ 5 Ft.: 1.5
Sones @ 0.100-In. SP @ 5 Ft.: 1.0Sones @ 0.125-In. SP @ 5 Ft.: 2.1
Sones @ 0.250-In. SP @ 5 Ft.: 1.5Full Load Amps: 0.18
Watts: 50Motor RPM: 700
Motor Enclosure: Open DripproofMounting Position: Ceiling, Horizontal
Housing Height: 7"Dimension B: 11-1/2"
Duct Dia.: 6"CFM @ 1.500-In. SP: -
Housing Width: 11-1/2"CFM @ 1.250-In. SP: -
Housing Length: 13-7/8"Insulated: No
Dimension E: 1-1/4"Recommended Accessories: 3DPF8, 3DPG1, 3AZF9, 3AZG1, 48C172
Phase: 1Dimension D: 6"
Grille Length: 14-7/8"Number of Speeds: 1
Dimension A: 13-7/8"Max. Inlet Temp.: 104 Degrees F
Grille Width: 13-1/4"Discharge Dia.: 6"
Country of Origin (subject to change): United States

Product Description

Ceiling Ventilator, Low Profile, Wheel Dia 7 5/16 In, CFM @ 0.000-In SP 102, @ 0.125-In SP 88, 2.2 Sones @ 0.100-In SP @ 5 Ft, 115 Volts, 60 Hz, 1 Phase, Full Load Amps 0.65, Single Speed, Motor RPM 700, Housing Height 7 15/16 In, Housing Width 11 1/2 In, Housing Length 13 7/8 In, Duct Dia 6 In, Grille Length 14 7/8 In, Grille Width 13 1/4 In, Grille Finish White, Housing Material Galvanized, G3411527 Speed Control, For Use With General Ventilation Applications
