  9. Centrifugal Pump, 1 HP, 1 Ph, 115/230V

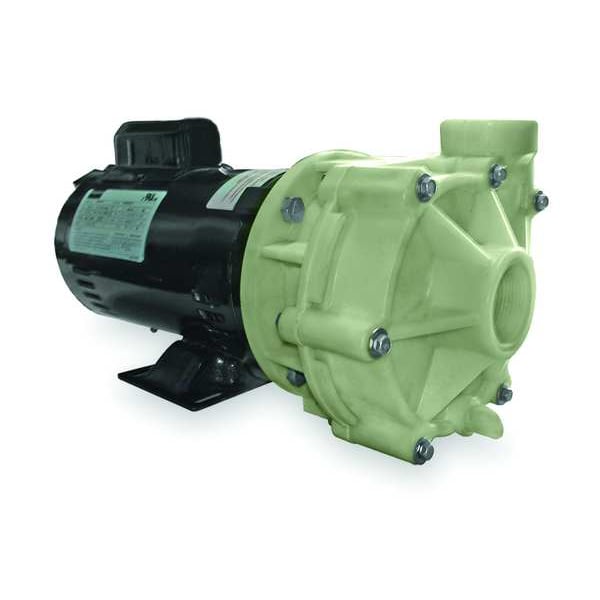

Dayton Centrifugal Pump, 1 HP, 1 Ph, 115/230V 2YER7 - main

Centrifugal Pump, 1 HP, 1 Ph, 115/230V

  • Mfr # 2YER7

  • Zoro # G3487696

product price: $703.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Housing Material
Polypropylene
Phase
Single
Voltage
115/230
Max. GPM @ Head
55 gpm @ 10 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2YER7
Zoro #
G3487696
UPC #
190735238462
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Width
7 5/8 in
Height
7 1/2 in
Max. Dia. Solids
1/4 in
Length
16 11/32 in
Overall Length
16.3 in
Overall Width
7.6 in
Overall Height
7.5 in
Solid Diameter (Maximum)
0.25 in
Intake Pipe Size
1 1/2 in
Shaft Outer Diameter
5/8 in
Discharge Pipe Size
1 1/2 in

Details

HP
1 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
Polypropylene
Phase
Single
Voltage
115/230
Max. GPM @ Head
55 gpm @ 10 ft
Max. Head
79 ft
Inlet
1-1/2 in NPT
Best Efficiency GPM @ Head
38 gpm @ 50 ft
Outlet
1-1/2 in NPT
Motor Enclosure
Open Dripproof
Volute Material
Polypropylene
GPM of Water @ 40 Ft. of Head
44
Application
Aggressive Liquid Applications, and Other General Purpose Pumping, Booster Service, Irrigation, Jockey Pump Service, Moderate Flow at Moderate Head Pressure, Spraying Systems, Transfer of Non-Flammable Liquids, Water Circulation
Best Efficiency Range GPM @ Head
21 to 50 gpm @ 65 to 25 ft
Inlet Pressure
75 psi
GPM of Water @ 15 Ft. of Head
54
GPM of Water @ 30 Ft. of Head
48
GPM of Water @ 10 Ft. of Head
55
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Max. Fluid Viscosity
100 SUS
Service Factor
1.4
GPM of Water @ 70 Ft. of Head
14
Impeller Type
Closed
Port Rotation
None
Shaft Material
Stainless Steel
Min. GPM @ Head
14 gpm @ 70 ft
GPM of Water @ 60 Ft. of Head
28
Max. Liquid Temp.
140 Degrees F
GPM of Water @ 20 Ft. of Head
53
Motor RPM
3,450 RPM
GPM of Water @ 50 Ft. of Head
38
Drain Plug
Yes
Impeller Material
Polypropylene
Agency Compliance
c UL us
Max. Case Pressure
100 psi
Amps
14.4/7.2
Seal Type
Mechanical
Max. Specific Gravity
1.0
Hz
60
GPM of Water @ 25 Ft. of Head
50
NEMA/IEC Frame
56J
Bearing Type
Ball
Includes
Manual
Wetted Materials
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
Duty
Continuous
Screw Material
Stainless Steel
Motor Type
Capacitor Start Induction
Standards
cULus Listed
Motor Speed (Maximum)
3,450 RPM
Discharge Rotation
None
Intake Pipe Type
NPT
Duty Cycle
Continuous
Current
14.4 or 7.2 A
Viscosity (Maximum)
100 SUS
Flow Rate @ 15 ft of Head (Maximum)
54 gpm
Impeller Design
Closed
Discharge Pipe Type
NPT
Flow Rate @ 25 ft of Head (Maximum)
50 gpm
Flow Rate @ 30 ft of Head (Maximum)
48 gpm
Media Temperature (Maximum)
140 Degrees F
Ambient Temperature (Maximum)
104 Degrees F
Flow Rate (Minimum)
14 gpm
Horsepower (Maximum)
1 hp
Feet of Head (Maximum)
79 ft
Specific Gravity (Maximum)
1
Frequency
60 Hz
Flow Rate @ 20 ft of Head (Maximum)
53 gpm
Compatible Motor Frame
56J NEMA
Best Efficiency Head
50 ft
Wetted Material
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
Nameplate Voltage
115/230V AC
Flow Rate (Maximum)
55 gpm
For Use With Potable Systems
No
Flow Rate @ 60 ft of Head (Maximum)
28 gpm
Shut Off Pressure (Maximum)
72 ft of head
Priming
Manual
Flow Rate @ 70 ft of Head (Maximum)
14 gpm
Case Pressure (Maximum)
100 psi
Flow Rate @ 40 ft of Head (Maximum)
44 gpm
Flow Rate @ 10 ft of Head (Maximum)
55 gpm
Electrical Connection Type
Hardwired
Best Efficiency Flow
38 gpm

Description

Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 79 ft, Flow Rate (Maximum) 55 gpm, Horsepower (Maximum) 1 hp, Housing Material Polypropylene, Impeller Design Closed, Impeller Material Polypropylene, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 140 Degrees F, Phase Single, Shut Off Pressure (Maximum) 72 ft of head, Viscosity (Maximum) 100 SUS, Flow Rate @ 10 ft of Head (Maximum) 55 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
