Shop DAYTON

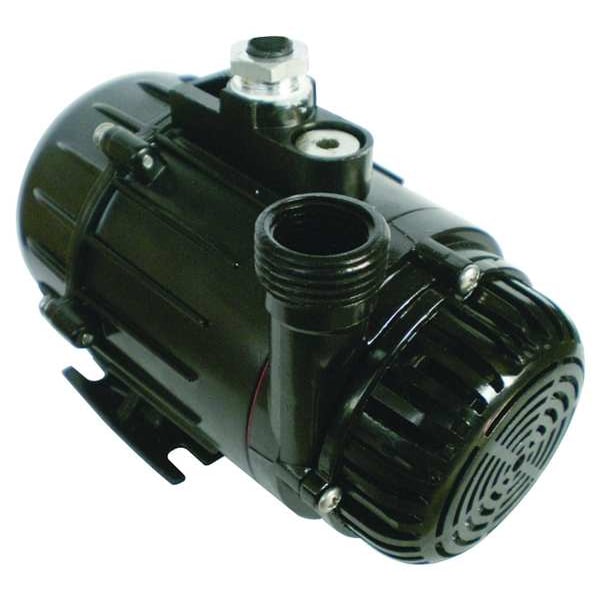

Zinc Alloy 1/10 HP Compact Submersible Pump 115V

  • Mfr # 12U598

  • Zoro # G4276237

product price:  $229.99
/ea
Free Shipping & Returns

Key Features

HP
1/10 hp
Voltage
115V
Full Load Amps
5.2 A
Cord Length
6 ft
Impeller Material
Zinc Alloy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12U598
Zoro #
G4276237
UPC #
190735117460
Country of Origin
China

Dimensions

Cord Length
6 ft
Height
4 7/8 in
Length
6 7/8 in
Width
4 1/2 in
Overall Width
4.5 in
Overall Height
4.9 in
Overall Length
4.9 in
Compatible Intake Pipe Size
3/4 in
Compatible Discharge Pipe Size
3/4 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
3/4 in
Discharge Diameter
3/4 in
Wire Rope Length
4.9 in

Details

Item
Centrifugal Pump
HP
1/10 hp
Voltage
115V
Full Load Amps
5.2 A
Impeller Material
Zinc Alloy
Duty
Continuous
Seal Material
Nitrile
GPH of Water @ 10 Ft. of Head
758
Inlet Type
3/4 in GHT/Screen
GPH of Water @ 5 Ft. of Head
855
Includes
Filter, Strainer
Overload Protection
Automatic
GPH of Water @ 1 Ft. of Head
950
Hz
60
GPH of Water @ 20 Ft. of Head
333
Motor Type
Shaded Pole
Housing Material
Zinc Alloy
Port Rotation
Yes
Cord Type
3-Conductor SJTOW, Resists Water and Oil
Agency Compliance
CSA CUS
Outlet
3/4 in (M)GHT
Motor RPM
3,400 RPM
Inlet
3/4 in GHT/Screen
Amps
5.2 A
Standards
cCSAus Certified
Compatible with Media Type
Oil
Frequency
60 Hz
Discharge Type
NPT
Horsepower
1/10 hp
Pumping Application
Condensate Removal, Decorative Water, Evaporative Cooling, Vaporizers
Flow Rate @ 1 ft of Head (Maximum)
950 gph
Maximum Feet of Head
24.7 ft
Duty Cycle
Continuous
Motor Sealing
Oil-Filled
Nameplate Voltage
115V AC
Maximum RPM
3,400 RPM
Pump Housing Material
Zinc Alloy
Flow Rate @ 5 ft of Head (Maximum)
855 gph
Intake Type
Screened
Flow Rate @ 10 ft of Head (Maximum)
758 gph
Drive Coupling Type
No Coupling
Chemical Compatibility
Oil
Full Load Current
5.2 A
Number of Stages
1
Flow Rate (Maximum)
950 gph
Inlet Standard
Screened
Thermal Overload Protection
Yes
Shaft Seal Material
Buna-N
Electrical Connection Type
3-Conductor SJOW, Resists Water and Oil
Feet of Head (Maximum)
24.7 ft
Phase
Single

Description

Centrifugal Pump, Pump Housing Material Zinc Alloy, Horsepower 1/10 hp, Nameplate Voltage 115V AC, Flow Rate @ 1 ft of Head (Maximum) 950 gph, Flow Rate @ 5 ft of Head (Maximum) 855 gph, Flow Rate @ 10 ft of Head (Maximum) 758 gph, Maximum Feet of Head 24.7 ft, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/4 in, Intake Type Screened, Discharge Type NPT, Cord Length 6 ft, Motor Sealing Oil-Filled, Amps 5.2 A, Compatible with Media Type Oil, Duty Cycle Continuous
