Item
|

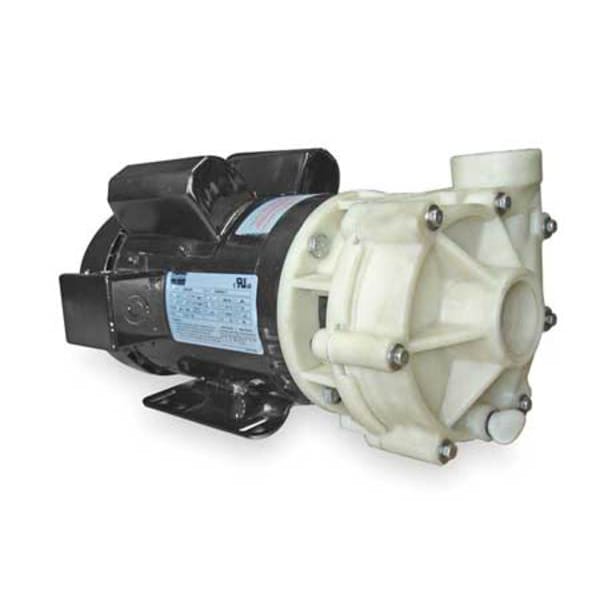

Chemical Resistant Centrifugal Pump
|
HP
|
3 hp
|
Housing Material
|
Polypropylene
|
Phase
|
Single
|
Voltage
|
230
|
Max. GPM @ Head
|
123 gpm @ 10 ft
|
Max. Head
|
95 ft
|
Best Efficiency GPM @ Head
|
80 gpm @ 60 ft
|
Inlet
|
1-1/2 in NPT
|
Outlet
|
1-1/2 in NPT
|
Motor Enclosure
|
Totally Enclosed Fan Cooled
|
Port Rotation
|
None
|
Includes
|
Manual
|
Drain Plug
|
Yes
|
Inlet Pressure
|
75 psi
|
GPM of Water @ 10 Ft. of Head
|
123
|
GPM of Water @ 80 Ft. of Head
|
48
|
Agency Compliance
|
c UL us
|
Wetted Materials
|
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
|
GPM of Water @ 40 Ft. of Head
|
97
|
Volute Material
|
Polypropylene
|
Max. Case Pressure
|
100 psi
|
GPM of Water @ 30 Ft. of Head
|
106
|
Max. Specific Gravity
|
1.0
|
Amps
|
12.5
|
Max. Liquid Temp.
|
140 Degrees F
|
Max. Fluid Viscosity
|
100 SUS
|
Application
|
Aggressive Liquid Applications, and Other General Purpose Pumping, Booster Service, Irrigation, Jockey Pump Service, Moderate Flow at Moderate Head Pressure, Spraying Systems, Transfer of Non-Flammable Liquids, Water Circulation
|
Seal Type
|
Mechanical
|
GPM of Water @ 70 Ft. of Head
|
63
|
GPM of Water @ 60 Ft. of Head
|
76
|
Impeller Material
|
Polypropylene
|
Seal Material
|
Buna-N, Carbon, Ceramic, Stainless Steel
|
Service Factor
|
1
|
GPM of Water @ 25 Ft. of Head
|
110
|
Screw Material
|
Stainless Steel
|
Min. GPM @ Head
|
48 gpm @ 80 ft
|
Impeller Type
|
Closed
|
Shaft Material
|
Stainless Steel
|
Motor RPM
|
3,450 RPM
|
GPM of Water @ 20 Ft. of Head
|
115
|
Duty
|
Continuous
|
GPM of Water @ 50 Ft. of Head
|
86
|
GPM of Water @ 15 Ft. of Head
|
119
|
Hz
|
60
|
Best Efficiency Range GPM @ Head
|
48 to 106 gpm @ 80 to 30 ft
|
NEMA/IEC Frame
|
56J
|
Bearing Type
|
Ball
|
Motor Type
|
Capacitor Start Capacitor Run
|
Standards
|
cULus Listed
|
Feet of Head (Maximum)
|
95 ft
|
For Use With Potable Systems
|
No
|
Flow Rate @ 30 ft of Head (Maximum)
|
106 gpm
|
Media Temperature (Maximum)
|
140 Degrees F
|
Duty Cycle
|
Continuous
|
Priming
|
Manual
|
Best Efficiency Flow
|
80 gpm
|
Flow Rate @ 80 ft of Head (Maximum)
|
48 gpm
|
Electrical Connection Type
|
Hardwired
|
Flow Rate @ 40 ft of Head (Maximum)
|
97 gpm
|
Flow Rate (Maximum)
|
123 gpm
|
Horsepower (Maximum)
|
3 hp
|
Impeller Design
|
Closed
|
Motor Speed (Maximum)
|
3,450 RPM
|
Flow Rate @ 20 ft of Head (Maximum)
|
115 gpm
|
Frequency
|
60 Hz
|
Discharge Pipe Type
|
NPT
|
Flow Rate @ 70 ft of Head (Maximum)
|
63 gpm
|
Case Pressure (Maximum)
|
100 psi
|
Flow Rate @ 15 ft of Head (Maximum)
|
119 gpm
|
Wetted Material
|
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
|
Specific Gravity (Maximum)
|
1
|
Viscosity (Maximum)
|
100 SUS
|
Current
|
12.5 A
|
Flow Rate @ 60 ft of Head (Maximum)
|
76 gpm
|
Compatible Motor Frame
|
56J NEMA
|
Ambient Temperature (Maximum)
|
104 Degrees F
|
Intake Pipe Type
|
NPT
|
Flow Rate @ 10 ft of Head (Maximum)
|
123 gpm
|
Flow Rate (Minimum)
|
48 gpm
|
Nameplate Voltage
|
230V AC
|
Flow Rate @ 25 ft of Head (Maximum)
|
110 gpm
|
Shut Off Pressure (Maximum)
|
85 ft of head
|
Best Efficiency Head
|
60 ft
|
Discharge Rotation
|
None
|
