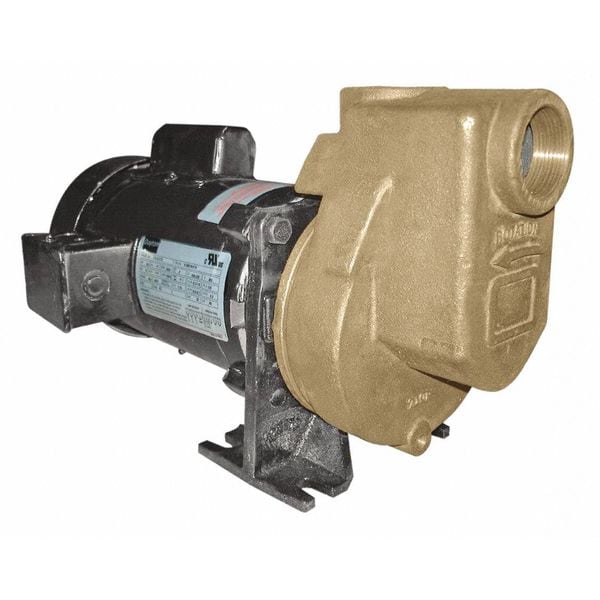

Centrifugal Pump, 3/4 hp, 115/208 to 230V AC, 1 Phase, 52 ft Max Head

  • Mfr # 2ZXP9

  • Zoro # G1903176

product price:
$
1,115.99
/ea
Free Shipping & Returns

Key Features

Item - Self Priming Pumps
Self Priming Centrifugal Pump
Inlet
1-1/2 in NPT
HP - Pumps
3/4 hp
Outlet
1-1/2 in NPT
Voltage - Pumps
115/208 to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2ZXP9
Zoro #
G1903176
UPC #
190735242902
Country of Origin
India

Dimensions

Outlet Size - Pumps
1-1/2 in NPT
Max. Dia. Solids - Pumps
3/8 in
Inlet Size - Pumps
1-1/2 in NPT
Length
17.3 in
Height
9 1/2 in
Manufacturers Warranty Length
1 yr
Width
6 1/8 in
Max. Dia. Solids
3/8"
Overall Width
6.1 in
Overall Height
9.5 in
Overall Length
17.3 in
Compatible Discharge Pipe Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.38 in
Inlet Diameter
1 1/2 in
Discharge Diameter
1 1/2 in
Shaft Outer Diameter
5/8 in
Motor Frame Size
56J
Impeller Diameter
4 1/32 in
Wire Rope Length
17.3 in

Details

Item
Centrifugal Pump
Item - Self Priming Pumps
Self Priming Centrifugal Pump
Inlet
1-1/2 in NPT
HP - Pumps
3/4 hp
Outlet
1-1/2 in NPT
Voltage - Pumps
115/208 to 230V AC
Phase - Pumps
1
HP
3/4
Wetted Materials
Bronze, Carbon, Ceramic, Stainless Steel, Viton
Voltage
115/208-230
Max. Head - Pumps
52 ft
Volute Material
Bronze
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Best Efficiency Range GPM @ Head
14 to 52 gpm @ 45 to 20 ft
Suction Lift
6 ft.
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Motor RPM
3,450 RPM
Max. Pressure - Pumps
22 psi
Housing Material - Pumps
Bronze
Amps
10.7/5.2-5.3
Agency Compliance
c UL us
Motor Design
Capacitor-Start
GPM of Water @ 50 Ft. of Head
4
Port Rotation - Pumps
No
GPM of Water @ 40 Ft. of Head
24
GPM of Water @ 5 Ft. of Head
65
Motor Enclosure
Totally Enclosed Fan Cooled
Frame
56J
Hz
60
Max. Specific Gravity
1.3
GPM of Water @ 10 Ft. of Head
61
GPM of Water @ 30 Ft. of Head
42
Max. Case Pressure
75 psi
Suction Lift - Pumps
6 ft
Inlet Pressure
75 psi
GPM of Water @ 20 Ft. of Head
52
Max. Liquid Temp.
200 Degrees F
Max. Head
52 ft.
Max. Temp - Pumps
200 Degrees F
Port Rotation
Single
Housing Material
Bronze
Includes
Manual
Impeller Material
Stainless Steel
Phase
Single
GPM of Water @ 15 Ft. of Head
56
Self-Priming
Yes
Motor Type
Single Phase
Bearing Type
Ball
Duty - Pumps
Continuous
Max. Pressure
22.5 psi
Impeller Type
Semi Open
Duty
Continuous
Standards
UL Recognized Motor
Seal Type
Mechanical
Shaft Material
Stainless Steel
Suction Lift (Maximum)
6 ft
Frequency
60 Hz
Maximum Feet of Head
50 ft
Maximum RPM
3,450 RPM
Motor Frame Designation
56J
Best Efficiency Flow
52 gpm
Intake Type
NPT
Flow Rate @ 20 ft of Head (Maximum)
52 gpm
Duty Cycle
Continuous
Horsepower
3/4 hp
Flow Rate @ 10 ft of Head (Maximum)
61 gpm
Best Efficiency Head
45 ft
Wetted Material
Bronze, Carbon, Ceramic, Stainless Steel, Viton
Flow Rate @ 30 ft of Head (Maximum)
42 gpm
Impeller Design
Semi-Open
For Use With Potable Systems
No
Flow Rate @ 40 ft of Head (Maximum)
24 gpm
Pump Housing Material
Bronze
Shut Off Pressure (Maximum)
22 psi
Nameplate Voltage
115/230V AC
Discharge Type
NPT
Specific Gravity (Maximum)
1.3
Thermal Overload Protection
Yes
Discharge Orientation
Top
Media Temperature - Minimum
40 Degrees F
Discharge Position
Center
Electrical Connection Type
Hardwired
Shaft Seal Type
Mechanical
Inlet Position
Center
Shut Off Pressure - Maximum
22 psi
Discharge Rotation Increments
0 Degrees
Suction Lift - Maximum
6 ft
Feet of Head (Maximum)
50 ft
Ambient Temperature - Maximum
40 Degrees C
Inlet Orientation
Side
Viscosity (Maximum)
100 SUS
Flow Rate (Maximum)
69 gpm
Full Load Current
10.7/5.3 A
Priming
Self-Priming
Flow Rate (Minimum)
24 gpm
Feet of Head (Minimum)
0 ft
Shaft Seal Material
Carbon/Ceramic, FKM, Stainless Steel
Pumping Application
Booster Services, Irrigation, Jockey Pump Services, Spraying Systems, Water Circulation
Drive Coupling Type
No Coupling
Media Temperature - Maximum
200 Degrees F
Case Pressure - Maximum
100 psi
Chemical Compatibility
Non-Flammable Liquids
Hazardous Location Class
Not Rated
Number of Stages
1
Flow Rate @ 10 ft of Head - Maximum
61 gpm
Mounting Orientation
Horizontal
Motor Speed - Maximum
3,450 RPM

Description

Centrifugal Pump, Phase Single, Pump Housing Material Bronze, Horsepower 3/4 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 24 gpm, Maximum Feet of Head 50 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 5 ft of Head (Maximum) 65 gpm, Flow Rate @ 10 ft of Head (Maximum) 61 gpm, Flow Rate @ 15 ft of Head (Maximum) 57 gpm
