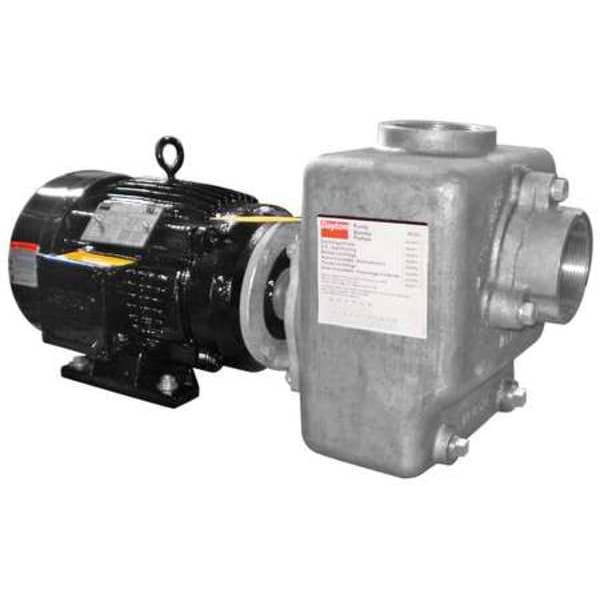

Centrifugal Pump, 3 hp, 208 to 230/460V AC, 3 Phase, 65 ft Max Head

  • Mfr # 12N811

  • Zoro # G4327181

product price:
$
3,574.99
/ea
Additional $125.00 delivery surcharge applies per item.
See details

Key Features

Item - Self Priming Pumps
Self Priming Centrifugal Pump
Inlet
3 in NPT
HP - Pumps
3 hp
Outlet
3 in NPT
Voltage - Pumps
208 to 230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12N811
Zoro #
G4327181
UPC #
190735115190
Country of Origin
India

Dimensions

Outlet Size - Pumps
3 in NPT
Max. Dia. Solids - Pumps
3/8 in
Inlet Size - Pumps
3 in NPT
Max. Dia. Solids
3/8"
Length
26.5 in
Manufacturers Warranty Length
1 yr
Height
12 5/8 in
Width
10 in
Overall Width
10 in
Overall Height
12.6 in
Overall Length
26.5 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
3 in
Compatible Intake Pipe Size
3 in
Solid Diameter (Maximum)
0.38 in
Motor Frame Size
182JM
Shaft Outer Diameter
7/8 in
Impeller Diameter
4 1/2 in
Discharge Diameter
3 in
Inlet Diameter
3 in
Wire Rope Length
26.5 in

Details

Item - Self Priming Pumps
Self Priming Centrifugal Pump
Item
Centrifugal Pump
Inlet
3 in NPT
HP - Pumps
3 hp
Outlet
3 in NPT
Voltage - Pumps
208 to 230/460V AC
Wetted Materials
Buna-N, Carbon, Ceramic, Stainless Steel
Phase - Pumps
3
HP
3
Max. Head - Pumps
65 ft
Voltage
208-230/460
Volute Material
316 Stainless Steel
Best Efficiency Range GPM @ Head
99 to 155 gpm @ 51 to 37 ft
Seal Material
Carbon, Ceramic, Viton
Suction Lift
20 ft.
Max. Pressure - Pumps
28 psi
Motor RPM
3,450 RPM
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Housing Material - Pumps
316 Stainless Steel
Motor Design
Three-Phase
GPM of Water @ 30 Ft. of Head
180
Max. Specific Gravity
1.0
GPM of Water @ 15 Ft. of Head
227
Phase
Three
Max. Temp - Pumps
180 Degrees F
Agency Compliance
c UL us
Max. Liquid Temp.
180 Degrees F
Suction Lift - Pumps
20 ft
Max. Pressure
28.1 psi
Bearing Type
Ball
Duty
Continuous
Impeller Material
Stainless Steel
GPM of Water @ 10 Ft. of Head
241
Hz
60
Port Rotation
No
Includes
Manual
GPM of Water @ 40 Ft. of Head
144
Duty - Pumps
Continuous
Inlet Pressure
100 psi
Motor Type
3-Phase
Housing Material
Stainless steel
GPM of Water @ 20 Ft. of Head
213
Max. Head
65 ft.
Port Rotation - Pumps
No
Frame
182JM
Max. Case Pressure
125 psi
GPM of Water @ 50 Ft. of Head
100
Motor Enclosure
Totally Enclosed Fan Cooled
Amps
8.2-7.4/3.7
Impeller Type
Semi Open
Self-Priming
Yes
Standards
UL Recognized Motor
Shaft Material
Steel
Seal Type
Mechanical
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Flow Rate @ 30 ft of Head (Maximum)
180 gpm
Flow Rate @ 10 ft of Head (Maximum)
241 gpm
Best Efficiency Flow
155 gpm
Maximum Feet of Head
65 ft
Discharge Type
NPT
Frequency
60 Hz
Flow Rate @ 40 ft of Head (Maximum)
144 gpm
Horsepower
3 hp
Wetted Material
Buna-N, Carbon, Ceramic, Stainless Steel
Nameplate Voltage
230/460V AC
Minimum Flow Rate
42 gpm
Shut Off Pressure (Maximum)
100 psi
For Use With Potable Systems
No
Specific Gravity (Maximum)
1
Duty Cycle
Continuous
Suction Lift (Maximum)
20 ft
Flow Rate @ 15 ft of Head (Maximum)
227 gpm
Priming
Self-Priming
Flow Rate @ 20 ft of Head (Maximum)
213 gpm
Impeller Design
Semi-Open
Maximum Flow Rate
241 gpm
Compatible with Media Type
Non-Flammable Liquids
Flow Rate @ 60 ft of Head (Maximum)
42 gpm
Maximum RPM
3,500 RPM
Intake Type
NPT
Pump Housing Material
Stainless Steel
Flow Rate @ 50 ft of Head (Maximum)
100 gpm
Feet of Head (Minimum)
10 ft
Best Efficiency Head
51 ft
Motor Frame Designation
182JM
Electrical Connection Type
Hardwired
Inlet Position
Center
Chemical Compatibility
Non-Flammable Liquids
Flow Rate (Minimum)
42 gpm
Discharge Orientation
Top
Full Load Current
7.4/3.7 A
Flow Rate (Maximum)
241 gpm
Motor Speed - Maximum
3,450 RPM
Thermal Overload Protection
Yes
Ambient Temperature - Maximum
40 Degrees C
Case Pressure - Maximum
100 psi
Feet of Head (Maximum)
65 ft
Drive Coupling Type
No Coupling
Mounting Orientation
Horizontal
Viscosity (Maximum)
100 SUS
Discharge Rotation Increments
0 Degrees
Number of Stages
1
Media Temperature - Maximum
180 Degrees F
Flow Rate @ 10 ft of Head - Maximum
241 gpm
Inlet Orientation
Side
Shut Off Pressure - Maximum
100 psi
Hazardous Location Class
Not Rated
Shaft Seal Material
Carbon/Ceramic, FKM
Discharge Position
Center
Shaft Seal Type
Mechanical
Media Temperature - Minimum
40 Degrees F
Suction Lift - Maximum
20 ft

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 3 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 144 gpm, Flow Rate @ 60 ft of Head (Maximum) 42 gpm, Maximum Feet of Head 65 ft, Compatible Intake Pipe Size 3 in, Intake Type NPT, Compatible Discharge Pipe Size 3 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 241 gpm, Flow Rate @ 10 ft of Head (Maximum) 241 gpm
