Shop DAYTON

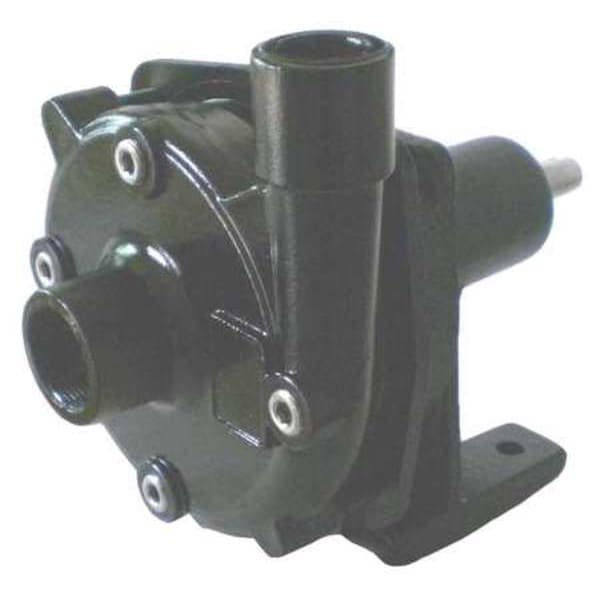

Centrifugal Pump Head, 1-1/2 HP, Cast Iron

  • Mfr # 10X671
  • Zoro # G3991382
product price:
$
670.99
/ea
Free Shipping & Returns

Key Features

HP Required
1 1/2 hp
Inlet
1-1/4 in
Outlet
1 in
Wetted Materials
304 SS, Cast Iron, Ceramic, SUS316,Carbon, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10X671
Zoro #
G3991382
UPC #
190735110249
Country of Origin
China

Dimensions

Width
7 15/16 in
Height
9 in
Max. Dia. Solids
1/8
Length
11.88 in
Manufacturers Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/4 in
Compatible Discharge Pipe Size
1 in
Overall Width
7.94 in
Manufacturer Warranty Length
1 yr
Sized for Horsepower
1 1/2 hp
Overall Length
11.88 in
Overall Height
9 in
Solid Diameter (Maximum)
0.13 in
Shaft Outside Diameter
3/4 in
Inlet Diameter
1 1/4 in
Discharge Diameter
1 in
Wire Rope Length
11.88 in

Details

HP Required
1 1/2 hp
Inlet
1-1/4 in
Outlet
1 in
Wetted Materials
304 SS, Cast Iron, Ceramic, SUS316,Carbon, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Max. Head
103 ft
For Use With
Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
GPM of Water @ 60 Ft. of Head
37.6
Item
Pedestal Pump
GPM of Water @ 5 Ft. of Head
56
Duty
Continuous
GPM of Water @ 80 Ft. of Head
25.8
Impeller Material
Stainless Steel
GPM of Water @ 10 Ft. of Head
55.7
Best Efficiency GPM @ Head
37.6 @ 60 ft
GPM of Water @ 50 Ft. of Head
42
GPM of Water @ 40 Ft. of Head
46.3
Max. Case Pressure
150 psi
Housing Material
Cast Iron
Inlet (In.)
1 1/4 in
Max. Specific Gravity
1.0
GPM of Water @ 70 Ft. of Head
32
Max. Pressure
44 psi
GPM of Water @ 30 Ft. of Head
49.5
GPM of Water @ 20 Ft. of Head
53.3
Impeller Type
Closed
GPM of Water @ 15 Ft. of Head
54.6
Inlet Pressure
106 psi
Shaft Material
316 Stainless Steel
Seal Type
Mechanical Type 21
Feet of Head (Minimum)
5 ft
Maximum Flow Rate
56 gpm
Flow Rate @ 15 ft of Head (Maximum)
54.6 gpm
Flow Rate @ 80 ft of Head (Maximum)
25.8 gpm
Minimum Flow Rate
25.8 gpm
Intake Type
NPT
Best Efficiency Flow
37.6 gpm
Discharge Type
NPT
Phase
Single
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Pump Housing Material
Cast Iron
Flow Rate @ 20 ft of Head (Maximum)
53.3 gpm
Motor Mount Type
Pedestal Mount Direct Drive
Pumping Application
Chemical Transfer, Water Circulation, Liquid Transfer, Booster Services
Best Efficiency Head
60 ft
Discharge Rotation
90 Degrees
Flow Rate @ 50 ft of Head (Maximum)
42 gpm
Wetted Material
304 Stainless Steel, 316 Stainless Steel, Carbon, Cast Iron, Ceramic, Viton
For Use With Potable Systems
No
System Pressure (Maximum)
44 psi
Maximum Media Temperature
180 Degrees F
Specific Gravity (Maximum)
1
NPSHr
244.86 ft
Maximum Feet of Head
103 ft
Priming
Manual
Flow Rate @ 30 ft of Head (Maximum)
49.5 gpm
Duty Cycle
Continuous
Flow Rate @ 10 ft of Head (Maximum)
55.7 gpm
Flow Rate @ 60 ft of Head (Maximum)
37.6 gpm
Flow Rate @ 5 ft of Head (Maximum)
56 gpm
Impeller Design
Closed
Flow Rate @ 70 ft of Head (Maximum)
32 gpm
Flow Rate @ 40 ft of Head (Maximum)
46.3 gpm
Discharge Rotation Increments
0 Degrees
Shaft Seal Type
Mechanical
Media Temperature - Maximum
180 Degrees F
Flow Rate (Maximum)
56 gpm
Shut Off Pressure - Maximum
44 psi
Chemical Compatibility
Non-Abrasive Liquids, Non-Flammable Liquids
Shaft Seal Material
Carbon/Ceramic/FKM/Stainless Steel
Flow Rate (Minimum)
25.8 gpm
Feet of Head (Maximum)
103 ft
Product Type
Pedestal Pump

Description

Pedestal Pump, Pump Housing Material Cast Iron, Sized for Horsepower 1 1/2 hp, Flow Rate @ 10 ft of Head (Maximum) 55.7 gpm, Flow Rate @ 20 ft of Head (Maximum) 53.3 gpm, Flow Rate @ 30 ft of Head (Maximum) 49.5 gpm, Flow Rate @ 40 ft of Head (Maximum) 46.3 gpm, Maximum Feet of Head 103 ft, Discharge Type NPT, Intake Type NPT, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Suction Lift (Maximum) Not Applicable, Shaft Outside Diameter 3/4 in, Priming Manual
