  9. Centrifugal Pump Head, 1-1/2 HP, SS

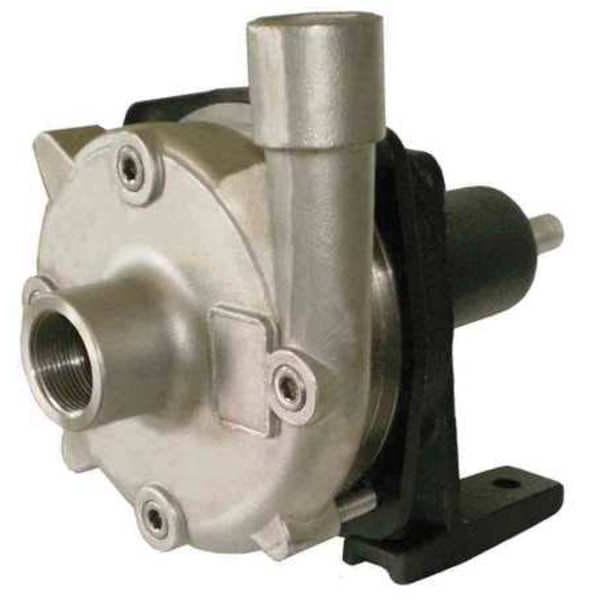

Dayton Centrifugal Pump Head, 1-1/2 HP, SS 10X669 - main

Centrifugal Pump Head, 1-1/2 HP, SS

  • Mfr # 10X669

  • Zoro # G4267033

product price: $1,122.99
/ea
Free Shipping & Returns

Key Features

HP Required
1 1/2 hp
Inlet
1-1/4 in
Outlet
1 in
Wetted Materials
304 SS, Ceramic, SUS316,Carbon, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10X669
Zoro #
G4267033
UPC #
190735110225
Country of Origin
China

Dimensions

Height
9 in
Width
7 15/16 in
Manufacturers Warranty Length
1 yr
Length
11 7/8 in
Max. Dia. Solids
1/8
Compatible Intake Pipe Size
1 1/4 in
Overall Length
11.88 in
Solid Diameter (Maximum)
0.13 in
Overall Height
9 in
Compatible Discharge Pipe Size
1 in
Sized for Horsepower
1 1/2 hp
Manufacturer Warranty Length
1 yr
Shaft Outside Diameter
3/4 in
Overall Width
7.94 in

Details

HP Required
1 1/2 hp
Inlet
1-1/4 in
Outlet
1 in
Wetted Materials
304 SS, Ceramic, SUS316,Carbon, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Max. Head
103 ft
For Use With
Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
Inlet (In.)
1 1/4 in
Bearing Type
Ball
Inlet Pressure
106 psi
GPM of Water @ 50 Ft. of Head
42
GPM of Water @ 10 Ft. of Head
55.7
GPM of Water @ 20 Ft. of Head
53.3
Housing Material
Stainless Steel
GPM of Water @ 80 Ft. of Head
25.8
GPM of Water @ 30 Ft. of Head
49.5
Duty
Continuous
Item
Pedestal Pump
Max. Specific Gravity
1.0
GPM of Water @ 5 Ft. of Head
56
Max. Case Pressure
150 psi
GPM of Water @ 40 Ft. of Head
46.3
Best Efficiency GPM @ Head
37.6 @ 60 ft
GPM of Water @ 15 Ft. of Head
54.6
Impeller Type
Closed
GPM of Water @ 60 Ft. of Head
37.6
GPM of Water @ 70 Ft. of Head
32
Impeller Material
Stainless Steel
Max. Pressure
44 psi
Shaft Material
316 Stainless Steel
Seal Type
Mechanical Type 21
Discharge Type
NPT
Pumping Application
Chemical Processing, Circulating Heated or Chilled Water, Liquid Transfer, Pressure Boosting
Duty Cycle
Continuous
NPSHr
106 psi
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
System Pressure (Maximum)
44 psi
Flow Rate @ 80 ft of Head (Maximum)
25.8 gpm
Pump Housing Material
Stainless Steel
Intake Type
NPT
Best Efficiency Flow
37.6 gpm
Maximum Feet of Head
103 ft
Wetted Material
304 Stainless Steel, 316 Stainless Steel, Carbon, Ceramic, Viton
Specific Gravity (Maximum)
1
Flow Rate @ 50 ft of Head (Maximum)
42 gpm
Flow Rate @ 5 ft of Head (Maximum)
56 gpm
Motor Mount Type
Pedestal Mount Direct Drive
Maximum Flow Rate
56 gpm
Flow Rate @ 15 ft of Head (Maximum)
54.6 gpm
Maximum Media Temperature
200 Degrees F
Minimum Flow Rate
25.8 gpm
Best Efficiency Head
60 ft
Discharge Rotation
90 Degrees
Flow Rate @ 60 ft of Head (Maximum)
37.6 gpm
Flow Rate @ 30 ft of Head (Maximum)
49.5 gpm
Priming
Manual
Impeller Design
Closed
Flow Rate @ 70 ft of Head (Maximum)
32 gpm
Flow Rate @ 40 ft of Head (Maximum)
46.3 gpm
For Use With Potable Systems
No
Flow Rate @ 20 ft of Head (Maximum)
53.3 gpm
Feet of Head (Minimum)
5 ft
Phase
Single
Flow Rate @ 10 ft of Head (Maximum)
55.7 gpm

Description

Pedestal Pump, Pump Housing Material Stainless Steel, Sized for Horsepower 1 1/2 hp, Flow Rate @ 10 ft of Head (Maximum) 55.7 gpm, Flow Rate @ 20 ft of Head (Maximum) 53.3 gpm, Flow Rate @ 30 ft of Head (Maximum) 49.5 gpm, Flow Rate @ 40 ft of Head (Maximum) 46.3 gpm, Maximum Feet of Head 103 ft, Discharge Type NPT, Intake Type NPT, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Suction Lift (Maximum) Not Applicable, Shaft Outside Diameter 3/4 in, Priming Manual

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
