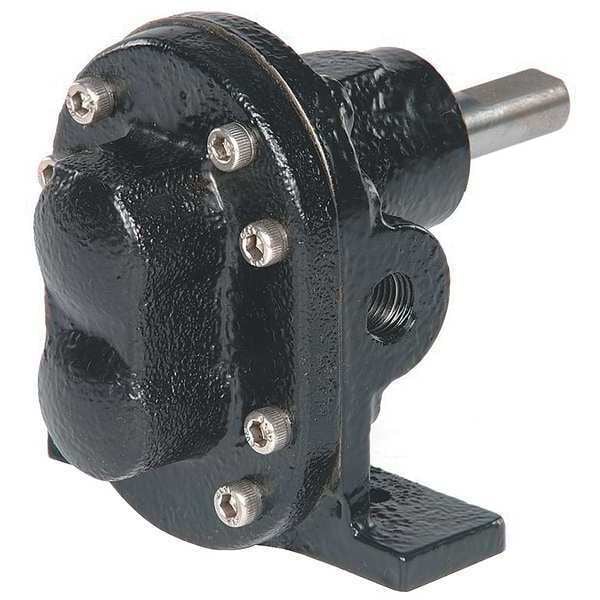

Rotary Gear Pump Head, 3/4 In., 1 HP

DAYTON| Zoro #: G1276125| Mfr #: 4KHJ8

$293.82 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1276125 Mfr #: 4KHJ8
Item: Rotary Gear Pump HeadDuty Rating: Light
Max. Viscosity: 550 SSUDesign: Pedestal
Temp. Range: -20 Degrees to 210 Degrees FPump RPM: 1725
Max. Pressure: 100 psiPump Body Material: Cast Iron
HP @ 25 PSI: 1-1/2GPM @ Freeflow: 20.6
HP @ Free Flow: 1-1/2GPM @ 20 PSI: 19.6
GPM @ 25 PSI: 20.5GPM @ 40 PSI: 19.4
GPM @ 50 PSI: 20.3HP @ 50 PSI: 2
GPM @ 60 PSI: 19GPM @ 75 PSI: 20.2
GPM @ 80 PSI: 18.5GPM @ 100 PSI: 19.8
HP @ 100 PSI: 2Gear: Steel Spur
Relief Valve: WithoutSeal: Viton Lip
Shaft Material: SteelO-Ring Material: Viton
Suction Lift: 15.2 ft.Shaft Dia.: 0.63"
Width: 5-3/4"HP @ Free Flow @ 1725 RPM: 2 1/9
GPM @ Freeflow @ 1725 RPM: 20.6Length: 5-1/4"
Port Size: 3/4"Height: 4"
Shaft Height: 3-9/16"Suction Lift @ 1725 RPM: 15.2 ft.
HP @ 75 PSI: 2Country of Origin (subject to change): India

Product Description

Rotary Gear Pump Head, Duty Rating Light, Pedestal, Pump Body Material Cast Iron, Port Size 3/4 In., Recommended Motor HP -, Pump RPM 1725, Temp. Range -20 Degrees to 210 Degrees F, Max. Pressure 100 psi, Max. Viscosity 550 SSU, Gear Steel Spur, Length 5-1/4 In., Width 5-3/4 In., Height 4 In., O-Ring Material Viton, Relief Valve Without, Seal Viton Lip, Shaft Dia. 0.63 In., Shaft Height 3-9/16 In., Shaft Material Steel, GPM @ Freeflow 20.6, HP @ Free Flow 1-1/2
