Shop DAYTON

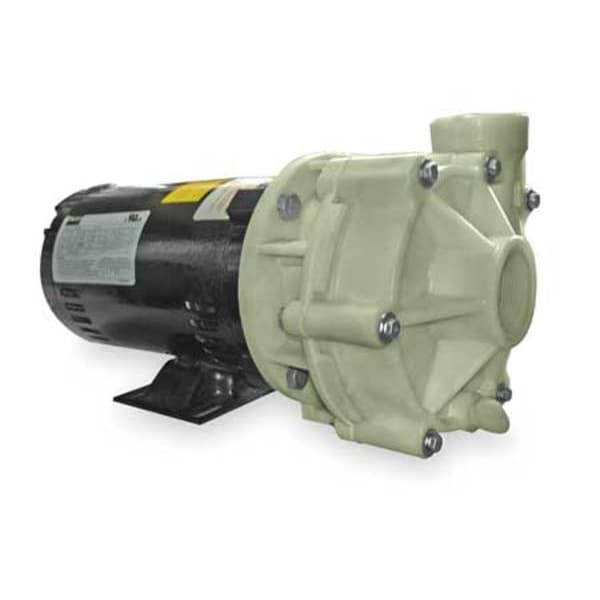

CentrifugalPump, 1/2hp, 3 Ph, 208-230/460V

  • Mfr # 2YER4

  • Zoro # G3239521

product price:
$
594.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Housing Material
Polypropylene
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
26 gpm @ 10 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2YER4
Zoro #
G3239521
UPC #
190735238431
Country of Origin
India

Dimensions

Width
7 5/8 in
Max. Dia. Solids
1/4 in
Height
7 1/2 in
Manufacturers Warranty Length
1 yr
Length
15 in
Overall Width
7.6 in
Overall Length
15 in
Overall Height
7.5 in
Discharge Pipe Size
1 1/2 in
Shaft Outer Diameter
5/8 in
Intake Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.25 in
Inlet Diameter
1 1/2 in
Impeller Diameter
4 21/32 in
Discharge Diameter
1 1/2 in
Manufacturer Warranty Length
1 yr
Motor Frame Size
56J

Details

HP
1/2 hp
Item
Centrifugal Pump
Housing Material
Polypropylene
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
26 gpm @ 10 ft
Max. Head
68 ft
Inlet
1-1/2 in NPT
Best Efficiency GPM @ Head
20 gpm @ 35 ft
Outlet
1-1/2 in NPT
Motor Enclosure
Open Drip Proof
Best Efficiency Range GPM @ Head
11 to 20 gpm @ 50 to 28 ft
Duty
Continuous
Max. Case Pressure
100 psi
Min. GPM @ Head
9 gpm @ 60 ft
Service Factor
1.6
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Hz
60
Agency Compliance
c UL us
Seal Type
Mechanical
Max. Specific Gravity
1.0
GPM of Water @ 40 Ft. of Head
14
GPM of Water @ 30 Ft. of Head
19
Max. Liquid Temp.
140 Degrees F
GPM of Water @ 10 Ft. of Head
26
Drain Plug
Yes
Amps
1.8-1.7/0.9
Shaft Material
Stainless Steel
GPM of Water @ 25 Ft. of Head
21
GPM of Water @ 60 Ft. of Head
9
Impeller Type
Closed
Inlet Pressure
75 psi
Screw Material
Stainless Steel
GPM of Water @ 50 Ft. of Head
11
Impeller Material
Polypropylene
GPM of Water @ 20 Ft. of Head
23
Max. Fluid Viscosity
100 SUS
Volute Material
Polypropylene
Wetted Materials
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
Bearing Type
Ball
Includes
Manual
Motor RPM
3,450 RPM
GPM of Water @ 15 Ft. of Head
24
Application
Aggressive Liquid Applications, and Other General Purpose Pumping, Booster Service, Irrigation, Jockey Pump Service, Moderate Flow at Moderate Head Pressure, Spraying Systems, Transfer of Non-Flammable Liquids, Water Circulation
Port Rotation
None
NEMA/IEC Frame
56J
Standards
UL Recognized Motor
Intake Pipe Type
NPT
Impeller Design
Closed
Flow Rate @ 15 ft of Head (Maximum)
24 gpm
Discharge Rotation
None
Flow Rate (Maximum)
26 gpm
Feet of Head (Maximum)
68 ft
Discharge Pipe Type
NPT
Nameplate Voltage
230/460V AC
Ambient Temperature (Maximum)
104 Degrees F
Duty Cycle
Continuous
Motor Speed (Maximum)
3,450 RPM
Case Pressure (Maximum)
100 psi
Priming
Manual
Frequency
60 Hz
Shut Off Pressure (Maximum)
68 ft of head
Flow Rate @ 40 ft of Head (Maximum)
14 gpm
Specific Gravity (Maximum)
1
Media Temperature (Maximum)
140 Degrees F
Flow Rate @ 10 ft of Head (Maximum)
26 gpm
For Use With Potable Systems
No
Wetted Material
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
Best Efficiency Head
35 ft
Horsepower (Maximum)
1/2 hp
Current
1.8 to 1.7 or 0.9 A
Flow Rate @ 20 ft of Head (Maximum)
23 gpm
Viscosity (Maximum)
100 SUS
Flow Rate (Minimum)
9 gpm
Flow Rate @ 25 ft of Head (Maximum)
21 gpm
Best Efficiency Flow
20 gpm
Flow Rate @ 30 ft of Head (Maximum)
19 gpm
Electrical Connection Type
Hardwired
Compatible Motor Frame
56J NEMA
Feet of Head (Minimum)
10 ft
Motor Speed - Maximum
3,450 RPM
Pump Housing Material
Plastic
Mounting Orientation
Horizontal
Inlet Orientation
Side
Motor Design
Three-Phase
Drive Coupling Type
No Coupling
Media Temperature - Minimum
40 Degrees F
Shut Off Pressure - Maximum
29.4 psi
Shaft Seal Material
Buna-N, Carbon/Ceramic, Stainless Steel
Chemical Compatibility
Non-Flammable Liquids
Hazardous Location Class
Not Rated
Discharge Position
Offset
Flow Rate @ 50 ft of Head (Maximum)
11 gpm
Media Temperature - Maximum
140 Degrees F
Shaft Seal Type
Mechanical
Case Pressure - Maximum
100 psi
Inlet Position
Center
Full Load Current
1.7/0.9 A
Discharge Rotation Increments
0 Degrees
Flow Rate @ 10 ft of Head - Maximum
26 gpm
Ambient Temperature - Maximum
104 Degrees F
Discharge Orientation
Top
Number of Stages
1
Thermal Overload Protection
Yes
Horsepower
1/2 hp
Pumping Application
Booster Services, Irrigation, Jockey Pump Services, Spraying Systems, Water Circulation

Description

Centrifugal Pump, Phase Three, Pump Housing Material Plastic, Horsepower 1/2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 14 gpm, Flow Rate @ 60 ft of Head (Maximum) Not Applicable, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Motor Enclosure Open Drip Proof, Flow Rate @ 5 ft of Head (Maximum) Not Applicable, Flow Rate @ 10 ft of Head (Maximum) 26 gpm, Flow Rate @ 15 ft of Head (Maximum) 24 gpm, Flow Rate @ 20 ft of Head (Maximum) 23 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
