  11. Combination Machine, 30.25 in Bending Length, 30 in Cutting Width, Min 1 1/2 in Rolls

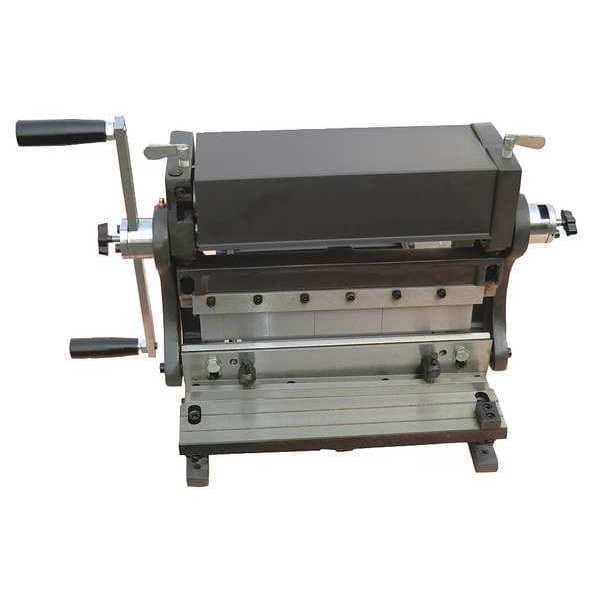

Dayton Combination Machine, 30.25 in Bending Length, 30 in Cutting Width, Min 1 1/2 in Rolls 13W869 - main

Combination Machine, 30.25 in Bending Length, 30 in Cutting Width, Min 1 1/2 in Rolls

  • Mfr # 13W869

  • Zoro # G4274191

product price: $1,142.99
/ea
Item requires special delivery charges. A $195.00 per item surcharge will be applied.

Key Features

Bending Length (In.)
30.25 in
Cutting Width (In.)
30 in
Rolls
Min 1 1/2 in
Capacity of Mild Steel (Gauge)
20
Application
Bender, Roller, Shear
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
13W869
Zoro #
G4274191
UPC #
190735128145
Country of Origin
China

Dimensions

Bending Length (In.)
30.25 in
Cutting Width (In.)
30 in
Finger Width (In.)
1 in, 2 in, 3 in, 6 in, 8 in, 10 in
Minimum Roller Diameter
1.54 in
Bending Length
30 1/4 in
Finger Width
1 in, 2 in, 3 in, 6 in, 8 in, 10 in

Details

Item
Combination Machine
Rolls
Min 1 1/2 in
Capacity of Mild Steel (Gauge)
20
Application
Bender, Roller, Shear
Features
High Carbon, Dual-edge Reversible Shear Blade Can Be Sharpened. Blade Is Adjustable After Wear Or Resharpening. Hold-down Is Positioned To Allow Visual Location Of The Shear Line. Bends 20 ga Mild Steel With High Carbon, Heat-treated Steel Male Dies, Sizes 1, 2, 3, 6, 8, And 10 in, Continuous Female in v in -shaped Forming Die. Three Rollers, Each 1-1/2 x 30 in, With Wire Forming Grooves. Rolls A Minimum 1-1/2 In Diar To An Unlimited Maximum. Height Stop-block. Two Extension Bars With 90 Degrees Angle. Iron Adjustable Length Stop
Die
Carbon Steel, Heat-treated Steel Male, Sizes 1, 2, 3, 6, 8 And 10 in , Continuous Female V Shaped Forming
Construction
Cast iron
Blade
Dual Edge Adjustable and Reversible
Roller Capacity Aluminum
15 ga
Shear Capacity Aluminum
15 ga
Brake Capacity Stainless Steel
24 ga
Brake Type
Box and Pan
Shear Capacity Stainless Steel
24 ga
Brake Capacity Aluminum
16 ga
Shear Capacity Mild Steel
19 ga
Actuation
Hand Lever
Power Source
Manual
Brake Capacity Mild Steel
19 ga
Number of Rollers
3
Maximum Bend Angle
90 Degrees
Roller Capacity Stainless Steel
24 ga
Roller Capacity Mild Steel
19 ga

Description

Combination Machine, Brake Capacity Aluminum 16 ga, Brake Capacity Mild Steel 19 ga, Brake Capacity Stainless Steel 24 ga, Brake Type Box and Pan, Maximum Bend Angle 90 Degrees , Finger Width 1 in, 2 in, 3 in, 6 in, 8 in, 10 in, Shear Capacity Aluminum 15 ga, Shear Capacity Mild Steel 19 ga, Shear Capacity Stainless Steel 24 ga, Roller Capacity Aluminum 15 ga, Roller Capacity Mild Steel 19 ga, Roller Capacity Stainless Steel 24 ga, Number of Rollers 3, Minimum Roller Diameter 1.54 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
