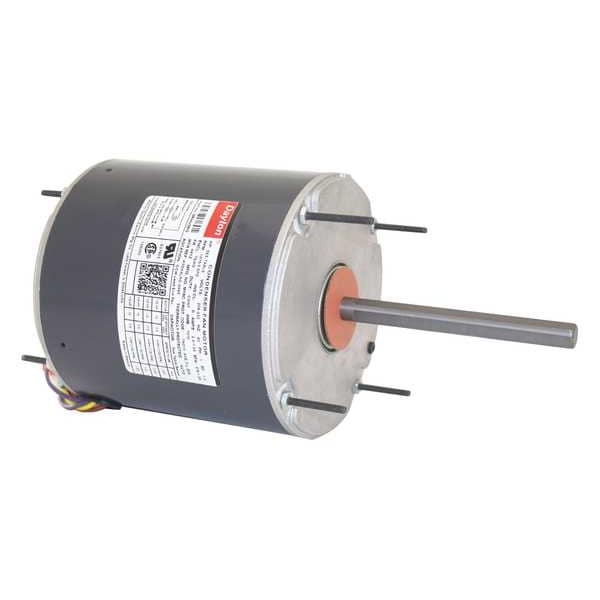

Condenser Fan Motor, 1/3 hp
Mfr # 5RHU4
Zoro # G0731832
product price: $311.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/6
RPM Range
0-1,000
No. of Speeds
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5RHU4
Zoro #
G0731832
UPC #
190735350430
Country of Origin
Multiple
Dimensions
Shaft Dia.
1/2 in
Shaft Length
5 in
Overall Length
10 13/16 in
Stud Size
8-32 UNF-2A x 1-1/4 in (Shaft-End) & 3/4 in (Opposite Shaft-End)
Body Dia.
5 5/8 in
Bolt Circle Dia.
5 1/8 in
Lead Length
48 in
Length Less Shaft
5 1/4 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 2, Voltage 208-230V AC, 1.9-1.0 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 5 in, Lead Length 48 in
