Shop All 3.3 Inch Diameter Motors
Fasco

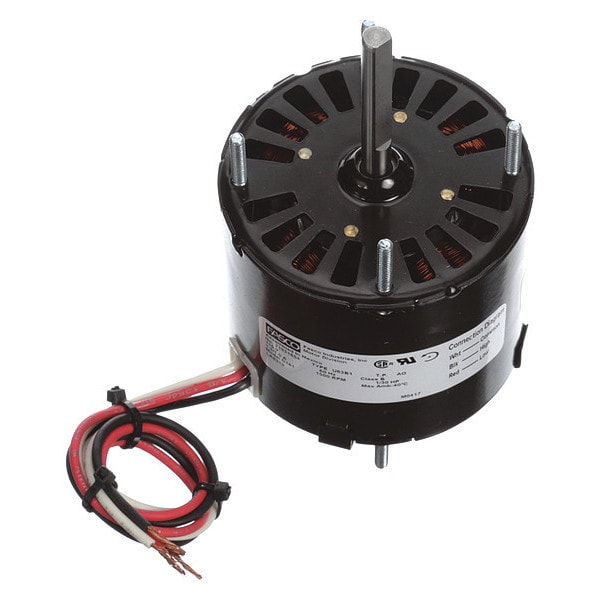

HVAC Motor, 1/30 HP, 1500 rpm, 115V, 3.3

product price: $103.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,500
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 2
  • HP 1/30
See all product information

Product Information

Dimensions

Shaft Length 2 1/4 in
Length Less Shaft 3 1/4 in
Body Dia. 3 5/16 in
Shaft Dia. 5/16 in
Bolt Circle Dia. 2 7/8 in
Lead Length 12 in
Overall Length 5 5/16 in
Stud Size #8-32

Details

Voltage 115V AC
Nameplate RPM 1,500
Motor Enclosure Design Open Air-Over
Number of Speeds 2
HP 1/30
RPM Range 1,401-1,500
Phase Single
Duty Continuous
Frame 3.3
Full Load Amps 1.3/1.0 A
Stud/Base Mtg. Pattern 2-7/8 in x 2-7/8 in
Item Direct Drive Blower Motor
Max. Ambient Temp. 40 Degrees C
Mounting Pattern 2-7/8 x 2-7/8
Mounting Stud Location 4/Both Ends
Motor Shaft Design Flat
Ins. Class B
No. of Speeds 2
Standards CSA Certified, UL Recognized
Number of Shafts 1
Motor Design Shaded Pole
Motor Bearings Sleeve
Hz 60 Hz
Application HVAC/R
Motor Thermal Protection Auto
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application Direct Drive Fan/Blower
Motor Mounting Type Stud
Motor Application HVAC/R
Motor Shaft Rotation CCWSE
Motor Service Factor 1
Capacitor Required No
Motor Mounting Position All Angle
Mounting Stud Pattern 2 7/8 in x 2 7/8 in
Motor Frame Material Steel
Weight 3 lb
Usable @ 200V No
Usable @ 208V No
Mounting Holes (8) #8-32
Mounting Stud

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/30 HP, Nameplate RPM 1,500, No. of Speeds 2, Voltage 115V AC, Full Load Amps 1.3/1.0 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
