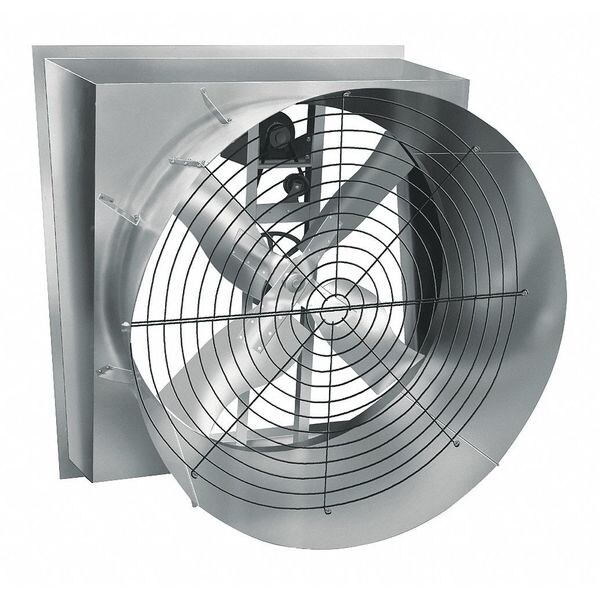

Cone Exhaust Fan, 36 In

DAYTON| Zoro #: G1491454| Mfr #: 5TR71

$1304.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1491454 Mfr #: 5TR71
Motor Insulation: Class BIncludes: Intake Shutter, Discharge Cone, Outlet Screen, 2 In. Corrosion-resistant Circular Guard
Phase: 1Bearing Type: Permanently Lubricated Ball
Item: Exhaust FanType: Cone, Belt-Drive
Max. Ambient Temp. (F): 104Voltage: 115/230
Hz: 60Motor RPM: 1750
Frame Finish: Galvanized SteelFrame Material: Galvanized Steel
Number of Blades: 4Motor Type: Capacitor Start
HP: 1/2Propeller Material: Galvanized Steel
Mesh Size: Galvanized SteelAgency Compliance: Bess Labs
Dimension D (In.): 10-3/4Dimension C (In.): 20 3/4
Dimension L (In.): 9-1/8Dimension J (In.): 45-1/8
Dimension K (In.): 51-7/8Dimension H (In.): 33 3/4
Dimension G (In.): 22-1/4Type: Cone, Belt-Drive
Propeller Dia. (In.): 36CFM @ 0.000-In. SP: 12, 360
CFM @ 0.050-In. SP: 11, 800CFM @ 0.100-In. SP: 11, 200
CFM @ 0.150-In. SP: 10, 560CFM/Watt @ 0.000-In. SP: 20.2
CFM/Watt @ 0.050-In. SP: 18.7CFM/Watt @ 0.100-In. SP: 17.1
CFM/Watt @ 0.150-In. SP: 15.7Fan RPM: 634
Voltage: 115/230Full Load Amps: 7.40/3.70
Motor RPM: 1750Motor Enclosure: Totally Enclosed Fan Cooled
Height (In.): 45 1/8Width (In.): 43 3/8
Max. Depth (In.): 33 3/4Opening Required H (In.): 42 3/4
Opening Required W (In.): 40 3/4Cone Dia. (In.): 59-1/2
Cone Depth (In.): 25-1/8Mounting Location: Wall
Shaft Dia. (In.): 63/64Number of Blades: 4
Dimension B (In.): 42 3/4Dimension A (In.): 40 3/4
Country of Origin (subject to change): United States

Product Description

Cone Exhaust Fan, Belt Drive, Propeller Dia 36 In, 12360 CFM @ 0.000-In SP, Volts 115/230, Full Load Amps 7.4/3.7, HP 1/2, Motor RPM 1750, Motor Type Capacitor Start, Motor Enclosure TEFC, Fan RPM 634, Bearing Type Ball, Height 45 1/8 In, Width 43 3/8 In, Max Depth 33 3/4 In, Propeller Material Galvanized Steel, Number of Blades 4, 20.2 CFM/Watt @ 0.000-In SP, Includes Intake Shutter, Discharge Cone, Outlet Screen, 2 In. Corrosion-resistant Circular Guard
