  5. Constant Pressure Booster Pump, 3/4 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 1 Stage

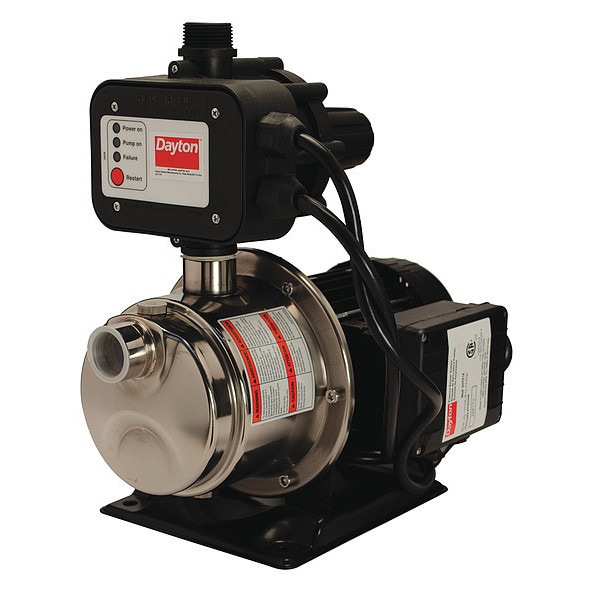

Dayton Constant Pressure Booster Pump, 3/4 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 1 Stage 4HFZ1 - main

Constant Pressure Booster Pump, 3/4 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 1 Stage

  • Mfr # 4HFZ1

  • Zoro # G3362947

product price:  $816.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Booster Pump
HP - Pumps
3/4 hp
Voltage - Pumps
115V AC
Phase - Pumps
1
Inlet Size - Pumps
1 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4HFZ1
Zoro #
G3362947
UPC #
190735325377
Country of Origin
Italy

Dimensions

Inlet Size - Pumps
1 in NPT
Outlet Size - Pumps
1 in NPT
Length (In.)
13
Width (In.)
9
Height (In.)
14
Max. Dia. Solids
Clear Water
Manufacturers Warranty Length
3 yr
Length
17 in
Height
17 in
Width
9 1/2 in
Overall Height
17 in
Overall Length
17 in
Overall Width
9.5 in
Discharge Flange Size
1 in
Compatible Discharge Pipe Size
1 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 in
Inlet Diameter
1 in
Cord Length
6 ft
Discharge Diameter
1 in

Details

Item
Constant Pressure Booster Pump
Booster Pump Type
Booster Pump
HP - Pumps
3/4 hp
Voltage - Pumps
115V AC
Phase - Pumps
1
Number of Stages - Pumps
1
Max. Pressure - Pumps
80 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Open
PSI Boost @ 20 GPM
16.5
PSI Boost @ 5 GPM
35.1
Seal Type
Mechanical
Inlet
1 in NPT
Includes
Pump Controller
Shut Off (PSI)
40
Motor Type
1-Phase
PSI Boost @ 10 GPM
32.1
PSI Boost @ 0 GPM
40.3
Outlet
1" NPT
HP
3/4 hp
Max. Inlet Pressure (PSI)
50
Voltage
115
PSI Boost @ 25 GPM
2.2
Amps
7.2 A
PSI Boost @ 15 GPM
25.6
Phase
Single
Best Efficiency GPM @ PSI
24 @ 80
Duty
Intermittent
Impeller Type
Closed
Max. Case Pressure
80 psi
Agency Compliance
CSA
Hz
60 Hz
Impeller Material
Thermoplastic
Motor Enclosure
Open Dripproof (ODP)
For Use With
Potable Water
Best Efficiency GPM @ Head
24 @ 40 ft
GPM @ 15 PSI
24 gpm
GPM @ 80 PSI
24 gpm
Application
Boosting
Standards
CSA Certified
Impeller Design
Closed
Case Pressure (Maximum)
80 psi
Tank Type
Tankless
Pump Housing Material
Stainless Steel
Intake Type
NPT
Discharge Type
NPT
Mounting Orientation
Horizontal
Thermal Overload Protection
Yes
Number of Stages
1
Pressure Boost (Minimum)
2 psi
For Use With Potable Systems
No
Maximum Flow Rate
24 gpm
System Pressure (Maximum)
80 psi
Pressure Boost (Maximum)
41 psi
Includes Controller
Yes
Horsepower
3/4 hp
Nameplate Voltage
115V AC
Duty Cycle
Intermittent
Frequency
60 Hz
Compatible with Media Type
Water
Discharge Standard
NPT
Pressure Boost - Minimum
2 psi
Electrical Connection Type
Plug-In
Inlet Standard
NPT
Inlet Gender
Female
Full Load Current
7.2 A
Power Source
Corded Electric
Pressure Switch Setting - Maximum
100 psi
Installation
Floor Standing
Motor Ambient Temperature - Minimum
32 Degrees F
Flow Rate - Maximum
24 gpm
Priming
Self-Priming
Motor Enclosure Design
Open Drip Proof
Motor Ambient Temperature - Maximum
140 Degrees F
Pump Casing Material
Stainless Steel
Shut Off Pressure - Maximum
80 psi
Discharge Gender
Male
Media Temperature - Maximum
130 Degrees F
Thermal Protection
Auto
Motor Design
Capacitor-Start/Run
Case Pressure - Maximum
80 psi
Pressure Boost - Maximum
41 psi
For Media Type
Clear Water
Pump Technology
Centrifugal
Suction Lift - Maximum
15 ft

Description

Automatic Booster Pump, 3/4 HP, 115 Voltage, 7.2 Amps AC, Suction Pipe Size 1 In., 1 NPT Outlet, Length 13 In., Width 9 In., Height 14 In., Shut Off 40 PSI, Material of Construction Stainless Steel, Motor Enclosure TEFC, Max. Inlet Pressure 50 PSI, Seal Type Mechanical, Includes Pump, Controller

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
