Shop All Chain Links
Dayton

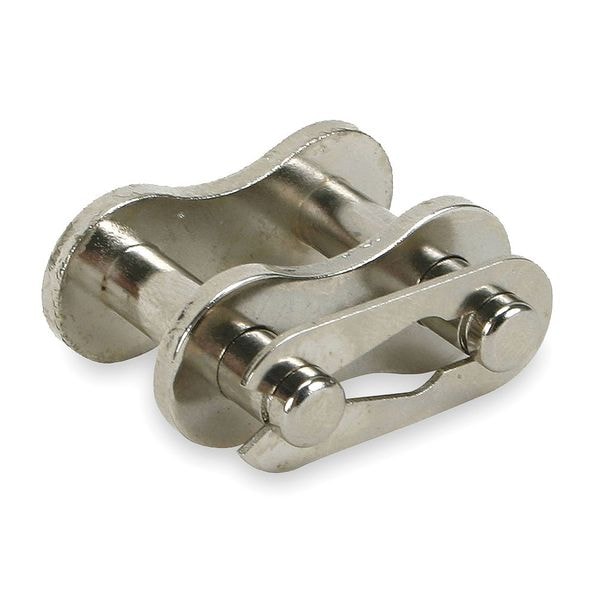

Corrosion Resis Roller Chain Link Pk5

product price: $7.99
/pk 5, $1.60/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type Standard Riveted
  • Industry Chain Size 50
  • Chain Link Material Nickel Plated Steel
  • Industry Chain Pitch 5/8 in
  • Number of Strands 1
See all product information

Product Information

  • Brand Dayton
  • MFR # 2YDZ9
  • Zoro # G0493577
  • UPC #
    190735237809
  • Country of Origin Multiple
  • Category Chain Links

Dimensions

Industry Chain Size 50
Chain Link Overall Width 1.01 in
Chain Roller Dia. 0.4 in
Pin Length 1.01 in
Roller Dia. (In.) 0.400
Chain Size - Sprockets 50
Hole Dia. 0.202 in
Width Between Roller Link Plates 0.375 in
Bushing Dia. 0.28 in
ANSI Chain Size 50NP
Inside Pin Dia. 0.2 in
Pin Length (In.) 0.851
Width Between Roller Link Plates (In.) 0.375
Overall Width (In.) 0.851
Outside Pin Dia. 0.2 in
Roller Link Plate Height 0.594 in
Bushing Dia. (In.) 0.280
Hole Dia. (In.) 0.199
Outside Pin Dia. (In.) 0.200
Roller Link Plate Height (In.) 0.579
Plate Height 19/32 in
Roller Diameter 25/64 in
Pin Outside Diameter 13/64 in
Inside Width 3/8 in
Pin Hole Diameter 13/64 in
Chain Overall Width 1 1/64 in

Details

Roller Chain Link Item Connecting Link
Roller Chain Link Type Standard Riveted
Chain Link Material Nickel Plated Steel
Industry Chain Pitch 5/8 in
Number of Strands 1
Rivet End to Center Line (In.) 0.401
Industrial Chain Pitch 5/8"
Max. Allowable Load (Lb.) 1430
Temp. Range 10 Degrees to 150 Degrees F
Type Roller
Tensile Strength 4,880 lbf
Pin Link Plate Thickness 0.08 in
Breaking Strength (Lb.) 6100
Pitch 5/8 in
Rivet End to Center Line 0.401 in
Breaking Strength 4,880 lb
Pin Link Plate Thickness (In.) 0.080
Material Steel
Item Connecting Link
Tensile Strength (Lb.) 6100
Connecting End to Center Line 0.45 in
Connecting End to Center Line (In.) 0.450
Max. Allowable Load 1,144 lb
Finish Nickel Plated
Chain Construction Riveted Pin
Plate Thickness 5/64 in
Maximum Operating Temperature 150 Degrees F
Link Type Connecting Link
Chain Number 50
Minimum Operating Temperature 10 Degrees F
Pin Contruction Riveted Pin
Working Load Limit 1,144 lb
Heavy Series No

Description

Connecting Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 1/64 in, Chain Number 50, Roller Diameter 25/64 in, Finish Nickel Plated, Pitch 5/8 in, Link Type Connecting, Number of Strands 1, Heavy Series No, Inside Width 3/8 in, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 10 Degrees F, Pin Contruction Riveted Pin, Pin Hole Diameter 13/64 in, Pin Outside Diameter 13/64 in, Plate Height 19/32 in, Plate Thickness 5/64 in
