Shop DAYTON

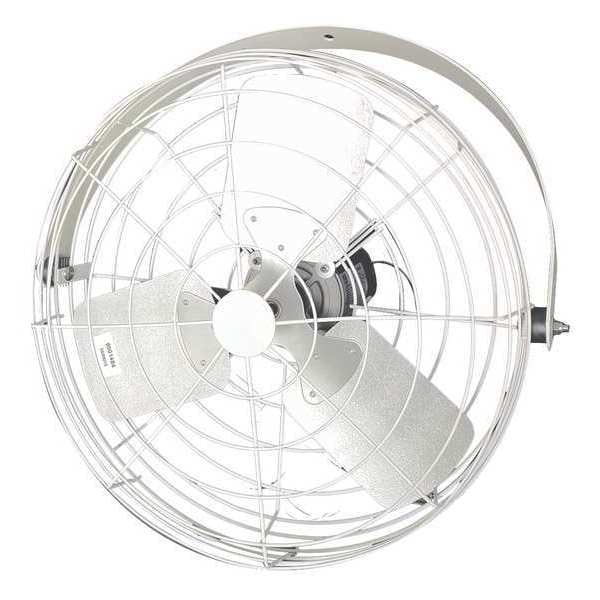

Corrosion Resistant Industrial Fan, Ceiling, IBeam, Wall Mount, 24 in Blade Dia, 115/230V

  • Mfr # 24B4WV-W-G

  • Zoro # G5565257

product price:
$
295.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115/230V AC
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24B4WV-W-G
Zoro #
G5565257
UPC #
00194484300876
Country of Origin
United States

Dimensions

Blade Diameter
24 in
Shaft Dia.
1/2 in
Width
15 in
Height
28 in
Outside Dia.
27"
Max. Depth
14"
Fan Cord Length
9 ft
Depth
14 in
Max. Mounting Height
30 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115/230V AC
Phase
1
Motor HP
1/3 hp
Air Flow
3,450/3,790/3,850 cfm
Drive Type
Direct Drive
Blade Material
Galvalume
Sound Level
62 dBA
Item
Mounted Fan
Max. Ambient Temp.
120 Degrees F
Number of Blades
3
Environmental Applications
Agricultural
CFM Medium
3790
Guard Material
Steel
Motor Insulation
B
Assembled
Yes
Motor RPM
1725
Motor Enclosure
Totally Enclosed Air-Over
Motor Type
Split Phase
CFM Low
3450
Hz
60 Hz
Fan Mounting Location
Ceiling, I-Beam, Wall
Includes
Mounting Bracket
Mobile/Stationary
Stationary
Application
Spot Cooling
CFM/Watt
13.1
Thermal Protection
Yes
Watts
336 W
Wire Guard Finish
Powder Coated
Housing Material
Steel
CFM High
3850
Fan Style
Corrosion Resistant
Fan Housing Material
Steel
Wheeled Base
Stationary
Assembly Required
No
RPM
1,725 RPM
Amps
3.5/1.7
Material
Steel
Motor hp
1/3 hp
Airflow
3,450 cfm, 3,790 cfm, 3,850 cfm
Standards
UL Recognized Motor, OSHA Compliant Guards
Mount Type
Bracket
Fan Blade Finish
Galvalume(R)-Coated
Motor Design
Permanent Split Capacitor
For Location
Barn, Greenhouse
Mounting Surface
I-Beam
Corrosion-Resistant
Yes

Description

Mounted Fan, Blade Dia. 24 in, Stationary, Non-Oscillating, Variable Speeds, Voltage 115/230V AC, 1 Phase, CFM High 3850, CFM Low 3450, Motor HP 1/3 hp, Motor RPM 1725, Operating Amps 3.5/1.7, Fan Mounting Location Ceiling, Wall, Fan RPM 1725, Sound Level 62 dBA, Max. Ambient Temp. 120 Degrees F, Hz 60 Hz, Watts 336 W, Motor Type Split Phase, Drive Type Direct Drive, Outside Dia. 27, Height 28 in, Width 15 in, Max. Depth 14 In., Cord Length 9 ft.
