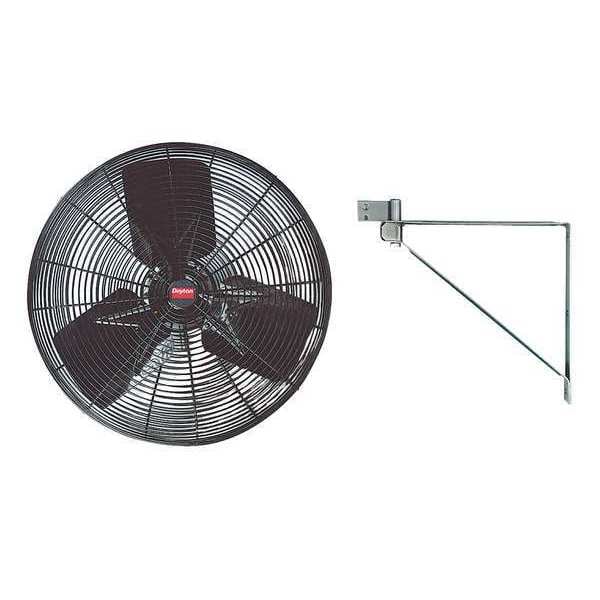

Light Duty Industrial Fan, 24 in Blade Dia, Non-Oscillating, 115VAC, 3800/5450 CFM

  • Mfr # 2MA10

  • Zoro # G3466102

product price:
$
264.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
1
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2MA10
Zoro #
G3466102
UPC #
190735223239
Country of Origin
Multiple

Dimensions

Blade Diameter
24 in
Outside Dia.
27"
Height
31 in
Width
27 in
Max. Depth
23"
Shaft Dia.
11/16 in
Depth
23 in
Fan Cord Length
9 ft
Height Adjustment
Fixed Height
Max. Mounting Height
Unrestricted

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
1
Motor HP
1/4 hp
Air Flow
3,800/5,450 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
74 dBA
Item
Mounted Fan
Air Velocity @ 20 Ft.
590/300 fpm
Motor Type
Permanent Split Capacitor
Requires
Assembly
NEMA Plug Configuration
5-15P
Watts
320/240 W
Hz
60 Hz
Includes
Mounting Hardware, Secondary Safety Support Cable, Mounting Bracket
Fan Mounting Location
Ceiling, Wall
Number of Conductors
3
Air Velocity @ 10 Ft.
1000/700 fpm
Wire Guard Finish
Powder Coated
Fan Accessory Style
Standard
Standards
cULus
Motor Insulation
B
Max. Ambient Temp.
104 Degrees F
Bearing Type
Ball
Air Velocity @ 40 Ft.
360/180 fpm
Fan Style
Standard
Environmental Applications
Industrial
Application
Spot Cooling and People Cooling
CFM Low
3800
Mobile/Stationary
Stationary
Number of Blades
3
Motor RPM
1100/950
Guard Material
Steel
CFM/Watt
17/16.9
Assembled
No
Thermal Protection
Automatic Reset
CFM High
5450
Motor Enclosure
Open Air Over
Housing Material
Steel
Air Velocity @ 60 Ft.
150/115 fpm
Wheeled Base
Stationary
Assembly Required
Yes
RPM
950 RPM, 1,100 RPM
Color
Black
Fan Housing Material
Steel
Amps
2.9/2.0
Material
Steel
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Guard Color
Black
Bearing Protection
Double-Sealed
Head Tilt Adjustment
40 Degrees
Mount Type
Bracket
High-Visibility
No
Corrosion-Resistant
No
Removable Base
Permanently Lubricated
Fan Shape
Basket
Smart Connectivity
Not Bluetooth Compatible, Not Wi-Fi Compatible
Sound Level - Minimum
72 dBA
Airflow
3,800 cfm, 5,450 cfm
Motor Design
Permanent Split Capacitor
Fan Power Source
Plug-In
IP Rating
Not Rated
Environment Rating
Dry
For Location
Manufacturing Plant
Features
AC Motor

Description

Light-Duty Industrial Fan, Blade Dia. 24 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 5450, CFM Low 3800, Air Velocity @ 20 Ft. 590/300 fpm, Motor HP 1/4 hp, Motor RPM 1100/950, Operating Amps 2.9/2.0, Fan Mounting Location Ceiling, Wall, Fan Accessory Style Standard, Fan RPM 1100/950, Sound Level 74 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 320/240, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 27 In., Height 31 in
