Shop DAYTON

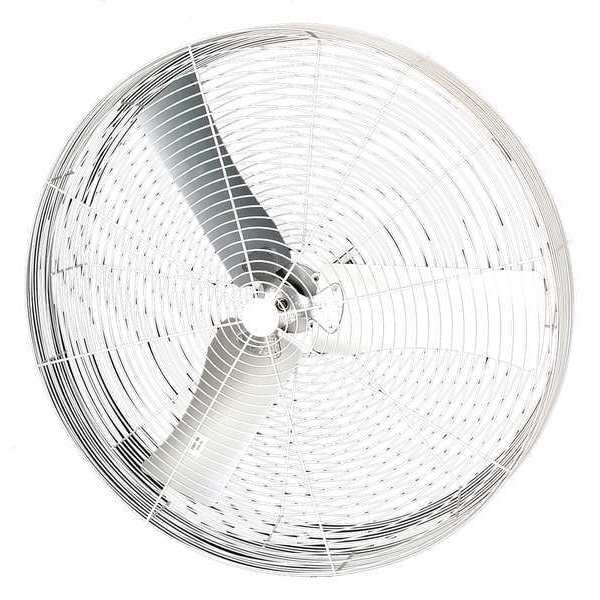

Corrosion Resistant Industrial Fan, Ceiling, IBeam, Wall Mount, 36 in Blade Dia, 208-230/460V

  • Mfr # 36B8WT-G
  • Zoro # G5565281
product price:
$
664.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
36 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Phase
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36B8WT-G
Zoro #
G5565281
UPC #
00194484300845
Country of Origin
United States

Dimensions

Blade Diameter
36 in
Shaft Dia.
5/8 in
Height
42 in
Outside Dia.
40"
Width
14 in
Max. Depth
16"
Max. Mounting Height
30 ft
Depth
15 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Phase
3
Motor HP
1/2 hp
Air Flow
13,310 cfm
Drive Type
Direct Drive
Blade Material
Galvalume
Sound Level
66 dBA
Item
Mounted Fan
Housing Material
Steel
CFM High
13,310
Motor RPM
825
Number of Blades
3
Mobile/Stationary
Stationary
Includes
Mounting Bracket
Hz
60 Hz
Thermal Protection
Yes
Fan Mounting Location
Ceiling, I-Beam, Wall
Motor Type
3 Phase
Guard Material
Steel
CFM/Watt
18.5
Max. Ambient Temp.
120 Degrees F
CFM Medium
13,310
Environmental Applications
Agricultural
Watts
519 W
Motor Insulation
B
Application
Spot Cooling
Wire Guard Finish
Powder Coated
Motor Enclosure
Totally Enclosed Air-Over
Assembled
Yes
CFM Low
13,310
Fan Style
Corrosion Resistant
Material
Steel
Amps
2.6/1.3
Motor hp
1/2 hp
RPM
825 RPM
Mounting Surface
I-Beam
Motor Design
Permanent Split Capacitor
Standards
UL Recognized Motor, OSHA Compliant Guards
Fan Blade Finish
Galvalume(R)-Coated
For Location
Barn
Airflow
13,310 cfm
Corrosion-Resistant
Yes
Mount Type
Arm

Description

Mounted Fan, Blade Dia. 36 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 208 to 230/460V AC, 3 Phase, CFM High 13,310, CFM Low 13,310, Motor HP 1/2 hp, Motor RPM 825, Operating Amps 2.6/1.3, Fan Mounting Location Ceiling, Wall, Fan RPM 850, Sound Level 66 dBA, Max. Ambient Temp. 120 Degrees F, Hz 60 Hz, Watts 519 W, Motor Type 3 Phase, Drive Type Direct Drive, Outside Dia. 40, Height 42 in, Width 14 in, Max. Depth 16 In.
