Shop DAYTON

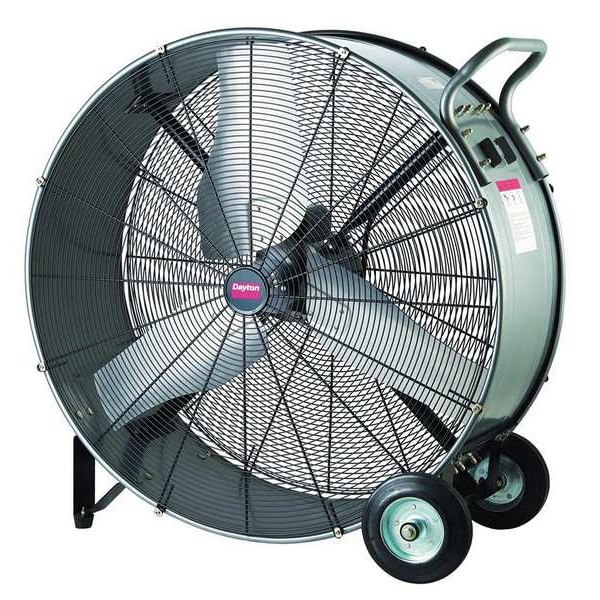

Standard Duty Air Circulator, Floor Mount, 48 in Blade Dia, 120V, 21,000 cfm, Non-Oscillating

  • Mfr # 6ALE4

  • Zoro # G0745613

product price:
$
1,477.99
/ea
Additional $90.00 delivery surcharge applies per item.
See details

Key Features

Blade Diameter
48 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
120V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ALE4
Zoro #
G0745613
UPC #
190735360194
Country of Origin
Multiple

Dimensions

Blade Diameter
48 in
Width
51 1/2 in
Shaft Dia.
3/4 in
Outside Dia.
51-1/2"
Max. Depth
21"
Height
52 in
Height Adjustment
Fixed
Fan Cord Length
10 ft
Wheel Dia.
10 in
Depth
21 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
120V AC
Phase
Single
Motor HP
1 hp
Air Flow
21,000 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
88 dBA
Item
Portable Fan
Air Velocity @ 60 Ft.
240 fpm
Number of Conductors
3
Air Velocity @ 40 Ft.
343 fpm
NEMA Plug Configuration
5-15P
Thermal Protection
Automatic Reset
Bearing Type
Ball
Guard Material
Steel
Requires
Some Assembly
Motor RPM
850
Housing Material
Steel
Motor Enclosure
Totally Enclosed Air-Over
Hz
60 Hz
Assembled
No
CFM High
21,000
CFM/Watt
19
Motor Insulation
B
Watts
1000 W
Standards
cULus
Environmental Applications
Industrial
Air Velocity @ 20 Ft.
557 fpm
Wire Guard Finish
Powder Coated
Includes
10 in Steel and Rubber Wheels, Cord Wrap
Motor Type
Permanent Split Capacitor
Application
Spot Cooling and People Cooling
Fan Mounting Location
Floor
Mobile/Stationary
Mobile
Air Velocity @ 80 Ft.
202 fpm
Number of Blades
3
Fan Style
Standard
Fan Accessory Style
Standard
Air Velocity @ 10 Ft.
755 fpm
Max. Ambient Temp.
104 Degrees F
Amps
8.7 A
Wheeled Base
Mobile
Wheel Material
Steel/Rubber
Color
Gray
Fan Housing Material
Steel
Assembly Required
Yes
RPM
850 RPM
Material
Steel
Motor hp
1 hp
NEMA plug Configuration
5-15p
High-Visibility
No
Removable Base
Permanently Lubricated
Guard Color
Black
Head Tilt Adjustment
0 Degrees
For Location
Manufacturing Plant
Bearing Protection
Sealed
Environment Rating
Dry
Corrosion-Resistant
Yes
Fan Shape
Drum
Housing Finish
Painted
Number of Wheels
2
Airflow
21,000 cfm

Description

Corrosion-Resistant Industrial Fan, Blade Dia. 48 in, Mobile, Non-Oscillating, 1 Speeds, Voltage 120V AC, 1 Phase, CFM High 21,000, Air Velocity @ 20 Ft. 557 fpm, Motor HP 1 hp, Motor RPM 850, Operating Amps 8.7, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 850, Sound Level 88 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 1000, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 51-1/2 In., Height 52 in, Width 51 1/2 in, Max. Depth 21 In.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This item has been restricted from sale in the following states: CA
