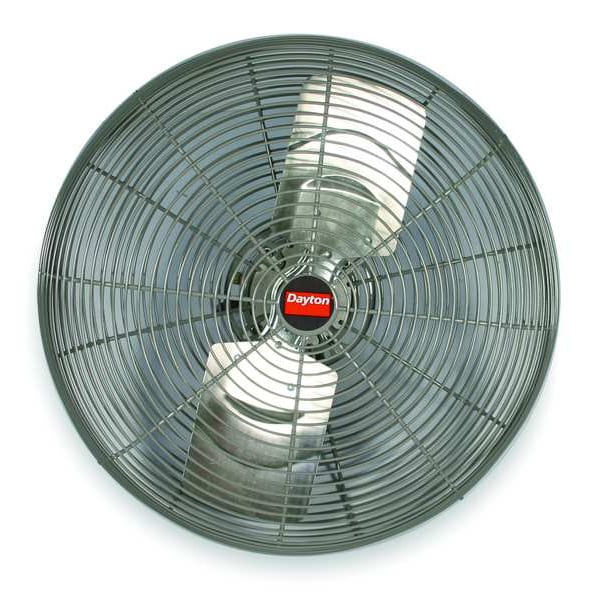

Dayton Corrosion Resistant Standard Duty Industrial Fan, Ceiling Mount, 18 in Blade Dia, 115V, 2,875 cfm 1ZCN7 - main

Corrosion Resistant Standard Duty Industrial Fan, Ceiling Mount, 18 in Blade Dia, 115V, 2,875 cfm

  • Mfr # 1ZCN7

  • Zoro # G1864177

product price:  $166.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
18 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1ZCN7
Zoro #
G1864177
UPC #
190735150634
Country of Origin
China

Dimensions

Blade Diameter
18 in
Shaft Dia.
1/2 in
Width
20-1/2 in
Max. Depth
12 in
Outside Dia.
20-1/2 in
Height
20-1/2 in
Fan Cord Length
10 ft
Depth
13 1/4 in
Height Adjustment
Fixed Height
Max. Mounting Height
Unrestricted

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V
Phase
1
Motor HP
1/15
Air Flow
2,875 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Fan Power Source
Plug-In
Sound Level
59 dBA
Item
Industrial Fan
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
Hz
60 Hz
Application
Greenhouse Cooling
Watts
120 W
Motor Enclosure
Totally Enclosed Air Over
Fan Mounting Location
Ceiling
Fan Style
Corrosion Resistant Standard Duty
Guard Material
Steel
Includes
S Hooks and Mounting Chains
Max. Ambient Temp.
104 Degrees F
Motor RPM
1,650 RPM
CFM High
2875
Environmental Applications
Industrial
Thermal Protection
Automatic Reset
Mobile/Stationary
Stationary
Standards
cULus, UL 507, OSHA Compliant Guards
Fan Accessory Style
Standard
Assembled
Yes
Number of Conductors
3
Air Velocity @ 20 Ft.
360 fpm
NEMA Plug Configuration
5-15P
Air Velocity @ 40 Ft.
110 fpm
Housing Material
Steel
CFM/Watt
33
Wire Guard Finish
Powder Coated
Air Velocity @ 10 Ft.
610 fpm
Bearing Type
Ball
Number of Blades
2
Fan Housing Material
Steel
Wheeled Base
Stationary
Assembly Required
No
Color
Gray
Amps
1.2
RPM
1,650 RPM
Material
Steel
Motor hp
1/15 hp
NEMA plug Configuration
5-15p
Features
AC Motor
Smart Connectivity
Not Bluetooth Compatible, Not Wi-Fi Compatible
Fan Shape
Basket
Corrosion-Resistant
Yes
High-Visibility
No
Guard Color
Gray
Mounting Surface
Joist
Motor Design
Permanent Split Capacitor
Airflow
3,000 cfm
For Location
Greenhouse
Environment Rating
Damp
IP Rating
Not Rated
Bearing Protection
Double-Sealed
Mount Type
Bracket
Removable Base
Permanently Lubricated

Description

Mounted Fan, Blade Dia. 18 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115V AC, 1 Phase, CFM High 2875, Air Velocity @ 20 Ft. 380 fpm, Motor HP 1/16 hp, Motor RPM 1650, Operating Amps 1.2, Fan Mounting Location Ceiling, Wall, Fan Accessory Style Standard, Fan RPM 1650, Sound Level 59 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 120 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 20-1/2 In., Height 21 in, Width 20 1/2 in, Max. Depth 12 In.
