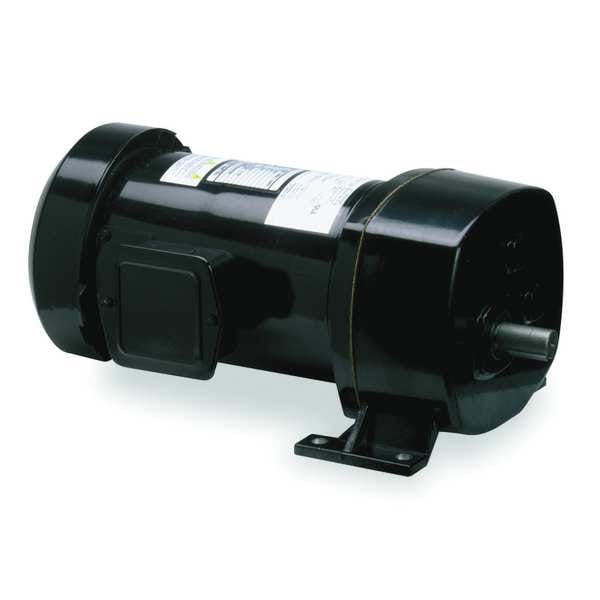

DC Gearmotor, 1,112 in-lb Max. Torque, 20 RPM Nameplate RPM, 90V DC Voltage
Mfr # 6Z413
Zoro # G0672691
product price:Â
$
1,247.99
/ea
Free Shipping & Returns
Key Features
Gearmotor Voltage
90V DC
Gearmotor Type
DC Gearmotor
Max. Torque
1,112 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6Z413
- Zoro #
- G0672691
- UPC #
- 190735374306
- Country of Origin
- United States
Dimensions
- Length Less Shaft
- 14 in
- Overall Length
- 15.5 in
- Shaft Length (Dimension V)
- 1 1/2 in
- Shaft Dia. (Dimension U)
- 3/4 in
- Overall Width
- 8.13 in
- Overall Height
- 6.63 in
- Keyway Depth
- 3/16 in
- Output Shaft Height
- 3 in
- Keyway Width
- 1/8 in
- Mount Hole Center-to-Center Width
- 7.13 in
- Mount Hole Center-to-Center Length
- 2.5 in
- Output Shaft Diameter
- 3/4 in
- Output Shaft Length
- 1 1/2 in
- Wire Rope Length
- 15.5 in
- Length
- 15.5 in
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Fan-Cooled, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 20 RPM, Maximum Torque 1,112 in-lb, Overhung Load Capacity 325 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Gear Ratio 87:1, Input Horsepower 1/2 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
