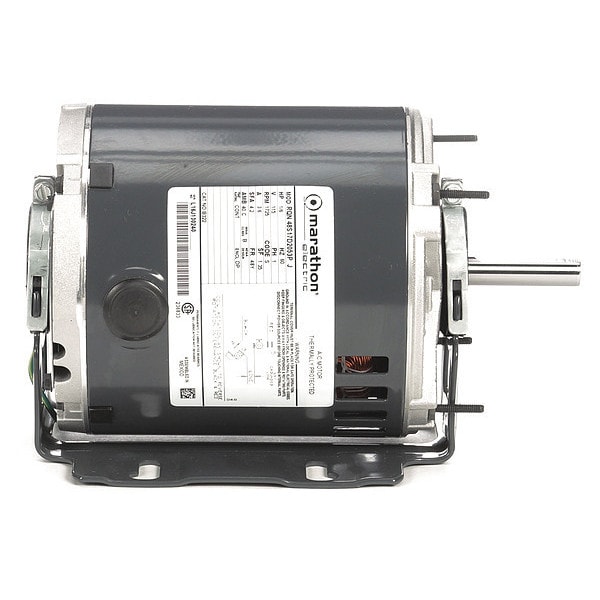

Condenser Fan Motor, 1/6 HP, 48Y Frame

  • Mfr # 048S17D2053
  • Zoro # G7244078
product price:
$
167.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/6
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048S17D2053
Zoro #
G7244078
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 13/16 in
Resilient Ring Dia.
2 1/4 in
Manufacturers Warranty Length
1 yr
Stud Size
#8-32
Length Less Shaft
7 7/16 in
Body Dia.
5 5/8 in
Overall Length
9 5/16 in
Bolt Circle Dia.
5-1/8"
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Resilient Ring Diameter
2 1/4 in
Frame Size
48Y

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Phase
Single
HP
1/6
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Ring/Stud
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Direct Drive Fan/Blower
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Standards
CE, CSA (LR2025), UL (E6312)
Full Load Amps
3.6 A
Ins. Class
B
Motor Shaft Design
Flat
Ring to Ring Center
7 1/16 in
Motor Bearings
Ball
Application
Fan/Blower
Capacitor Required
Capacitor Not Required
Duty
Continuous
Hz
60 Hz
Nominal Efficiency
55 %
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Stud Quantity
4
Motor Service Factor
1.35
Motor Frame Material
Steel
Usable @ 208V
No
Usable @ 200V
No
Weight
13 lb
Duty Cycle
Continuous
Mounting Position
Horizontal
Frequency
60 Hz
Product Type
Fan and Blower Motor
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Drive Type
Belt Drive
Full Load Current @ 60 Hz
3.6 A
Duty Rating
Commercial
Manufacturers Warranty
1 yr
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.35
Number of Speeds
1

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 3.6 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
