  6. DC Gearmotor, 228 in-lb Max. Torque, 10 RPM Nameplate RPM, 90V DC Voltage

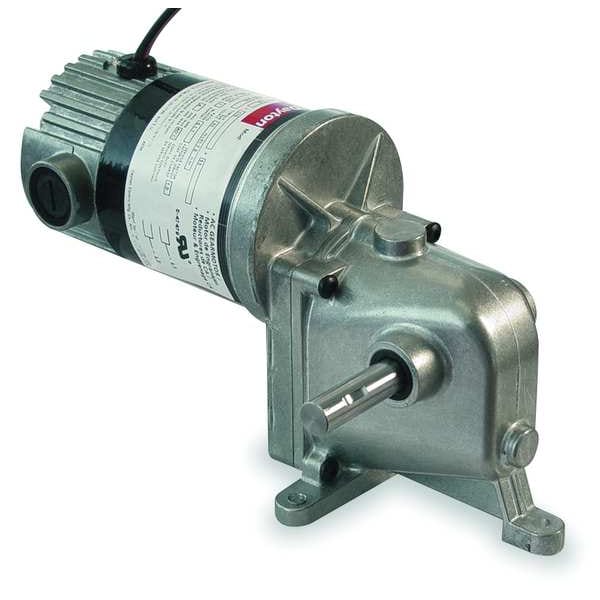

Dayton DC Gearmotor, 228 in-lb Max. Torque, 10 RPM Nameplate RPM, 90V DC Voltage 1LRB1 - main

DC Gearmotor, 228 in-lb Max. Torque, 10 RPM Nameplate RPM, 90V DC Voltage

  • Mfr # 1LRB1

  • Zoro # G1114443

product price:  $477.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
90V DC
Gearmotor Type
DC Gearmotor
Max. Torque
228 in-lb
Gearmotor Shaft Type
Single Right
Gearmotor Shaft Orientation
Right Angle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1LRB1
Zoro #
G1114443
UPC #
190735144848
Country of Origin
Mexico

Dimensions

Keyway Size Type
#404 Woodruff Key
Shaft Length (Dimension V)
1 5/8 in
Keyway Size
#404 Woodruff Key
Shaft Dia. (Dimension U)
1/2 in
Output Shaft Length
1 5/8 in
Output Shaft Diameter
1/2 in

Details

Item
DC Gearmotor
Gearmotor Voltage
90V DC
Gearmotor Type
DC Gearmotor
Max. Torque
228 in-lb
Gearmotor Shaft Type
Single Right
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
10 RPM
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Rotation
CW/CCW
Gearmotor Mounting Position
All Angle
Full Load Amps
0.59 A
Standards
C-UL Recognized, UL Recognized
Input HP
1/20
Gear Type
Worm
Shaft Orientation
Right Angle
Reversible Shaft Output
No
Seals
Lip Type on Output Shaft
Max. Ambient Temp.
40 Degrees C
RPM Range
0 to 15
Lubrication
Grease Filled
Overhung Load
100 lb
Enclosure
TENV
Shaft
Right Hand Output
Motor Type
Permanent Magnet DC
Bearings
Ball on Motor, Porous Bronze Sleeve on Case
Gear Case
Die Cast Zinc
Gear Ratio
161:1
Finish
Unpainted
Gear Material
Input Gear Steel
Replacement Brushes
6YHY6
Insulation Class
F
Tachometer Feedback
No
Brushes
Externally Replaceable
Mounting
All Position
Rotation
CW/CCW
Thermal Protection
None
Voltage
90VDC
Rear Shaft Encoder/Pulse Generator Mounting
No
Housing Material
Die Cast Zinc
Replaceable Motor Brushes
Yes
Keyway Type
Woodruff #404
Nameplate Speed
10 RPM
Bearing Type
Ball on Motor, Porous Bronze Sleeve on Case
Operating Voltage
90V DC
Motor Enclosure
Totally Enclosed Nonventilated
Input Horsepower
1/20 hp
Maximum Ambient Temperature
40 Degrees C
Mounting Orientation
Any Angle
Seal Type
Lip Type on Output Shaft
Maximum Torque
228 in-lb
Full Load Current
0.59 A
Housing Material Finish
Unpainted
Overhung Load Capacity
100 lb

Description

DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 10 RPM, Maximum Torque 228 in-lb, Overhung Load Capacity 100 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 161:1, Input Horsepower 1/20 hp, Output Shaft Diameter 1/2 in, Bearing Type Ball on Motor, Porous Bronze Sleeve on Case
