Shop MARATHON

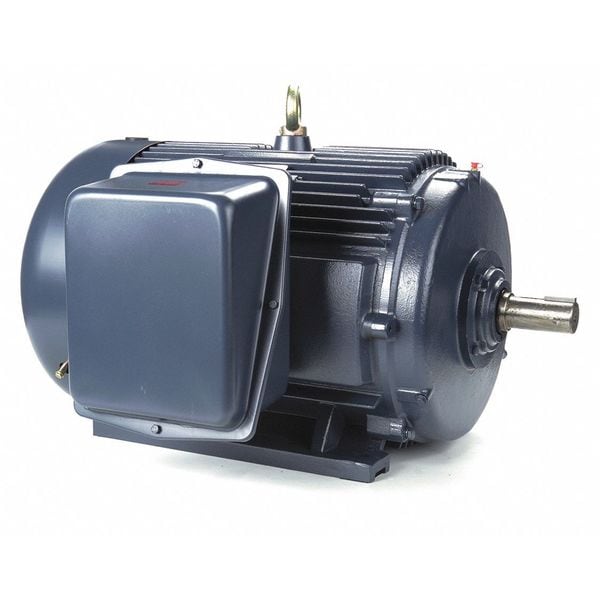

Three-Phase General Purpose Motor, 100 HP, 405TS Frame, 230/460V AC Voltage, 3575 rpm Nameplate RPM

  • Mfr # 405TSTFCD6001

  • Zoro # G9875573

product price:
$
9,922.89
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
100
Nameplate RPM
3575 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
222.0/111.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
405TSTFCD6001
Zoro #
G9875573
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
31 1/2 in
Overall Length
35 3/4 in
Shaft Dia.
2 1/8 in
Shaft Length
4 1/4 in
Manufacturers Warranty Length
1 yr
Frame Size
405TS
Shaft Diameter
2 1/8 in
Wire Rope Length
35 3/4 in
Length
35 3/4 in

Details

Item
General Purpose Motor
HP
100
Nameplate RPM
3575 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
222.0/111.0 A
Frame
405TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.5 %
Standards
CSA Certified, UL Listed
CC Number
CC003A
Includes
Conduit Box
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Duty Cycle
Continuous
Weight
1,100 lb
Usable @ 200V
Not Usable at 200V
Capacitor Required
No
Inverter Rating
Inverter Rated
Nameplate Voltage @ 50 Hz
208-230/460V AC
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
222.0/111.0 A
Product Type
General Purpose Motor
Nameplate RPM @ 50 Hz
1,431 RPM
Shaft Design
Keyed
Bearing Type
Ball
Manufacturers Warranty
1 yr
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Insulation Class
F

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 100 HP, Nameplate RPM 3575 rpm, Frame 405TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 222.0/111.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 3001-3600
