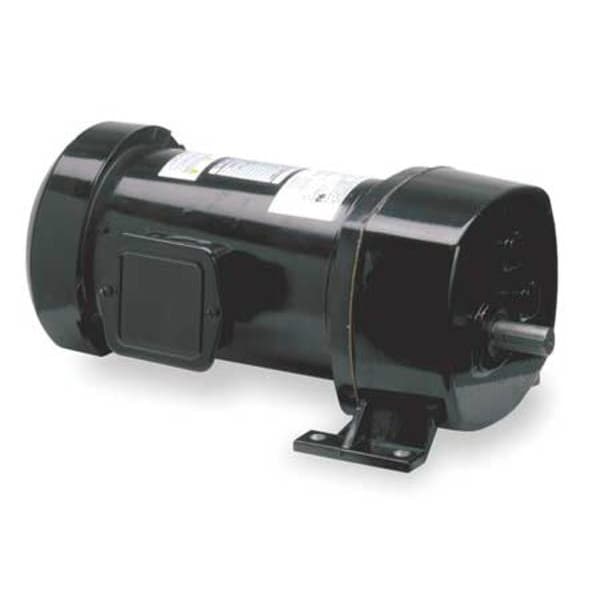

DC Gearmotor, 664 in-lb Max. Torque, 40 RPM Nameplate RPM, 90V DC Voltage
Mfr # 6Z415
Zoro # G0363772
product price:Â $1,124.99
/ea
Free Shipping & Returns
Key Features
Gearmotor Voltage
90V DC
Gearmotor Type
DC Gearmotor
Max. Torque
664 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
6Z415
Zoro #
G0363772
UPC #
190735374320
Country of Origin
United States
Dimensions
Length Less Shaft
14 in
Overall Length
15.5 in
Shaft Dia. (Dimension U)
3/4 in
Shaft Length (Dimension V)
1-1/2"
Overall Height
6.63 in
Overall Width
8.13 in
Output Shaft Diameter
3/4 in
Keyway Depth
3/16 in
Output Shaft Length
1 1/2 in
Mount Hole Center-to-Center Length
2.5 in
Keyway Width
1/8 in
Output Shaft Height
3 in
Mount Hole Center-to-Center Width
7.13 in
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Fan-Cooled, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 40 RPM, Maximum Torque 664 in-lb, Overhung Load Capacity 325 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Gear Ratio 41:1, Input Horsepower 1/2 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
