DC Gearmotor, 710 in-lb Max. Torque, 6.5 RPM Nameplate RPM, 90V DC Voltage

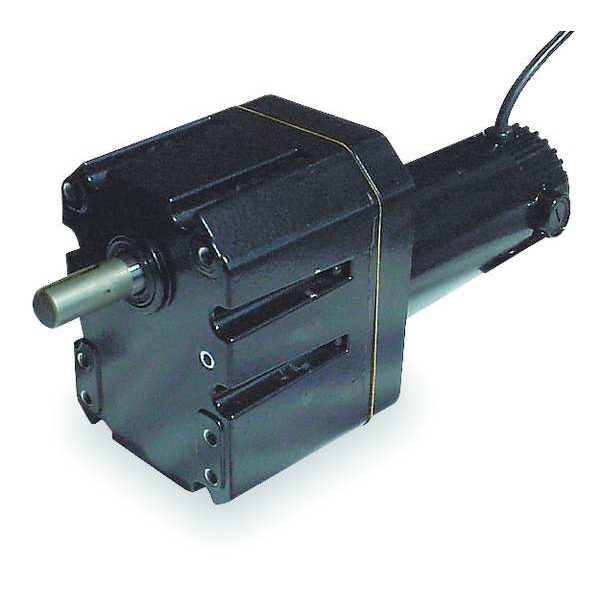

Dayton DC Gearmotor,  710 in-lb Max. Torque,  6.5 RPM Nameplate RPM,  90V DC Voltage 2H592
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$646.68
  • Item: DC Gearmotor
  • Gearmotor Voltage: 90V DC
  • Gearmotor Type: DC Gearmotor
See full product details
This item ships free.
Total: $646.68

Dayton #2H592 Specifications

  • Item: DC Gearmotor
  • Gearmotor Voltage: 90V DC
  • Gearmotor Type: DC Gearmotor
  • Max. Torque: 710 in-lb
  • Gearmotor Shaft Type: Single
  • Gearmotor Shaft Orientation: Parallel
  • Nameplate RPM: 6.5 RPM
  • Gearmotor Enclosure: Totally Enclosed Nonventilated
  • Gearmotor Rotation: CW/CCW
  • Length Less Shaft: 12 1/2 in
  • Gearmotor Mounting Position: All Angle
  • Full Load Amps: 1.0 A
  • Standards: C-UL Recognized, UL Recognized
  • Input HP: 1/6
  • Dimension H: 4.67"
  • Thermal Protection: None
  • Overall Length: 14 3/8 in
  • Dimension A: 12.43 in
  • Tachometer Feedback: Yes
  • Enclosure: TENV
  • RPM Range: 0 to 15
  • Shaft Orientation: Parallel
  • Gear Case: Die Cast Aluminum
  • Overhung Load: 900 lb
  • Reversible Shaft Output: No
  • Rear Shaft Encoder/Pulse Generator Mounting: Yes
  • Voltage: 90VDC
  • Replacement Brushes: 6YHY6
  • Gear Ratio: 276:1
  • Bearings: Ball on Motor, Needle Throughout with Thrust Balls on Case
  • Brushes: Externally Replaceable
  • Gear Type: Helical and Spur
  • Mounting: All Position
  • Lubrication: Permanent Heavy Fluid Gear Oil
  • Seals: Spring Loaded Lip Type on Input and Output Shaft
  • Motor Type: Permanent Magnet DC
  • Max. Ambient Temp.: 40 Degrees C
  • Shaft Dia. (Dimension U): 3/4"
  • Gear Material: Hardened Steel
  • Shaft Length (Dimension V): 1-7/8"
  • Housing Material: Die Cast Aluminum
  • Rotation: Reversible
  • Dimension D: 3.13 in
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

DC Gearmotor, Gearmotor Voltage 90V DC, Max. Torque 710 in-lb, Single Gearmotor Shaft Type, Nameplate RPM 6.5 RPM, Totally Enclosed Nonventilated Gearmotor Enclosure, All Angle Gearmotor Mounting Position, Overhung Load 900 lb, Input HP 1/6, Gear Ratio 276:1, Full Load Amps 1.0 A, None Thermal Protection, Motor Type Permanent Magnet DC, Replacement Brushes 6YHY6
