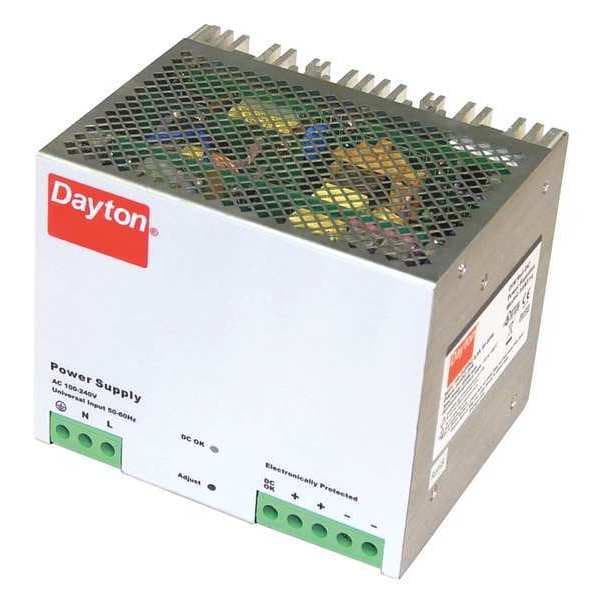

Dayton DC Power Supply, 90/264V AC, 24V DC, 480 W, 20 A, DIN Rail 33NT14 - main

DC Power Supply, 90/264V AC, 24V DC, 480 W, 20 A, DIN Rail

  • Mfr # 33NT14

  • Zoro # G2098735

product price: $465.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
90/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33NT14
Zoro #
G2098735
UPC #
190735261323
Country of Origin
China

Dimensions

Overall Height
6.14 in
Overall Width
4.96 in
Overall Depth
5.12 in
Width
6.14 in
Height
4.96 in
Depth
5.12 in

Details

Item
DC Power Supply
Input Voltage
90/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Output Voltage
24V DC
Peak Amps
25
Standards
cULus Listed
Hold Up Time
Greater Than 20 msec
Case Material
Metal Case
Output Amps
20A
Output Noise
Less Than or Equal to 1%
Hz
47 to 63 Hz
IP Rating
IP20
Phase - Electrical
Single
Style
Switching
Features
Adjustable Output Voltage Compensates for Voltage Drop, Capable of Parallel Connection to Provide Redundancy for Critical Load Applications, Full Enclosed Touch-Safe Enclosure and Terminals, High Peak Power Eliminates the Need to Oversize Your Power Supply, Narrow Width Conserves Valuable Space On the DIN Rail, Universal Input Without Voltage Gaps for Full Product Application Versatility
Power Rating
480W
Status Indicator
LED OK and O/P Monitor Signal
Operating Temp. Range
-10 to 70°C
Input Frequency - Nominal
50/60 Hz
Manufacturer Warranty
1 yr
Current - Peak
25 A
Special Features
Adjustable Output Voltage, Parallel Capability, Finger Safe
Operating Temperature - Minimum
14 Degrees F
NEMA Enclosure Rating
1
Operating Temperature - Maximum
158 Degrees F

Description

DC Power Supply, Input Voltage 90 to 264V AC, Output Voltage 24V DC, Power Rating 480W, Output Amps 20, Mounting DIN Rail, Switching, Case Material Metal Case, Height 4.96 in, Width 6.14 in, Depth 5.12 in, Series Not Applicable, Hz 47 to 63 Hz, Phase - Electrical Single, Peak Amps 25, IP Rating IP20, Output Noise Less Than or Equal to 1 Percent, Hold Up Time Greater Than 20 msec, Status Indicator LED OK and O/P Monitor Signal, NEMA Rating 1
