Shop DAYTON

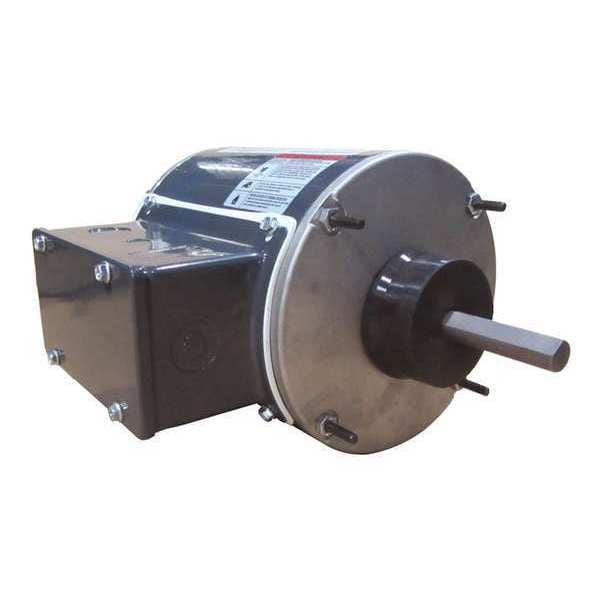

Definite Purpose HVAC Motor, 1/4 hp

  • Mfr # VED140U2916.5G
  • Zoro # G7368369
product price:
$
269.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
10E027, 10E041
Fits Brand
Dayton
For Use With
10D984D
Shaft Length
228 mm
Capacitor Required
Capacitor Not Required
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VED140U2916.5G
Zoro #
G7368369
UPC #
190735957950
Country of Origin
China

Dimensions

Shaft Length
228 mm
Bolt Circle Diameter
130 mm
Shaft Diameter
12 11/16 mm
Body Diameter
144 mm
Length Less Shaft
6 1/4 in
Frame Size
48YZ

Details

For Use With Mfr. Model Number
10E027, 10E041
Fits Brand
Dayton
Item
Motor
For Use With
10D984D
Capacitor Required
Capacitor Not Required
Compatible Manufacturer Part Number
10E027, 10E041
Bearing Type
Ball
Motor Design
Three-Phase
Phase
Three
Drive Type
Direct Drive
Frame Material
Steel
Insulation Class
B
Compatible Brand
Dayton
Ambient Temperature - Maximum
40 Degrees C
Product Type
Definite Purpose HVAC Motor
Mounting Position
Horizontal
Conduit Box Location
Exterior
Full Load Current @ 60 Hz
1.5-1.6/0.9 A
Frequency
60 Hz
Conduit Box Position
F2
Usable @ 200V
Not Usable at 200V
Duty
Continuous
Usable @ 208V
Usable at 208V
Manufacturers Warranty
1 yr
Efficiency Rating
Standard Efficiency (IE1)

Description

Definite Purpose HVAC Motor, Three Phase, Motor Design Three-Phase, 1/4 hp HP, Nameplate RPM 1,750 RPM, Voltage 208-230/460V AC, Full Load Amps 1.5-1.6/0.9 A, 48YZ Frame, OEM Replacement Brand Dayton, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
